| Removing and installing
→ Chapter |
| The centre punch marks -arrows- on the
steering wheel and the steering column must align when reinstalling.
Some steering columns leave the factory with no centre punch mark. On
these steering columns a respective centre punch mark must be made
before removing the steering wheel
→ Chapter. |
| Removing and installing
→ Chapter |
| Different versions possible. Refer to
→ Electronic Parts Catalogue |
| The centre punch marks -arrows- on the
steering wheel and the steering column must align when reinstalling.
Some steering columns leave the factory with no centre punch mark. On
these steering columns a respective centre punch mark must be made
before removing the steering wheel
→ Chapter. |
Questions & answers

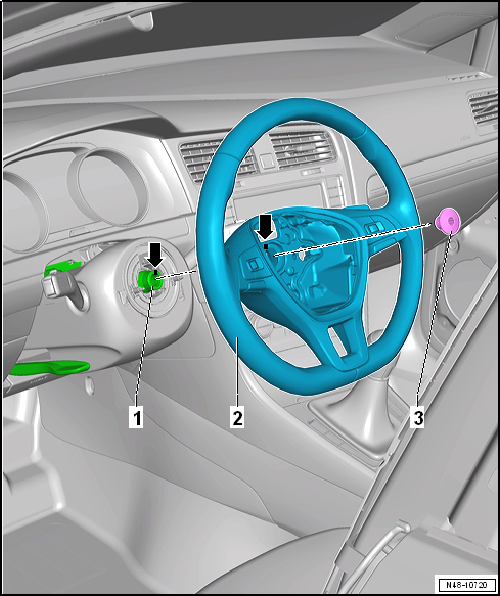

Assembly overview - steering wheel — Volkswagen Golf Mk7
What does the Golf Mk7 steering wheel assembly show?
Steering wheel, airbag module, horn contact, multifunction buttons (if fitted), column nut torque and clock spring reference.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1331-
Removin ...
