 Note

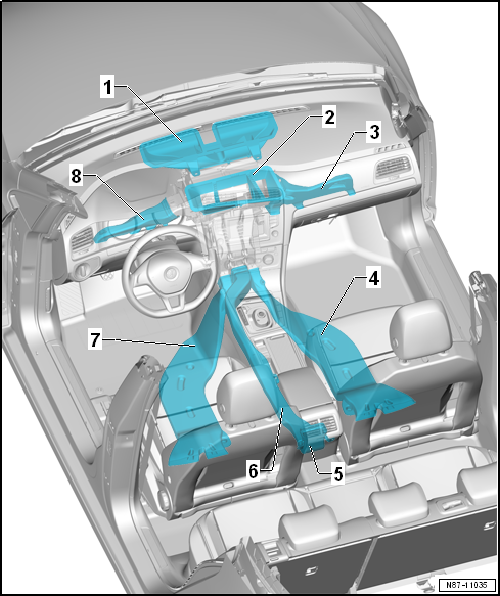

| The illustration shows a left-hand drive vehicle. |
|
|
|
| 1 - |
Air duct for defroster vent |
| Removing and installing
→ Chapter. |
| 2 - |
Air duct for centre dash panel vent |
| Removing and installing
→ Chapter. |
| 3 - |
Footwell vent on front passenger side |
| Removing and installing
→ Chapter. |
| 4 - |
Removing and installing rear footwell vent |
| Removing and installing
→ Chapter. |
| 5 - |
Air duct for rear of centre console |
| Installed depending on vehicle equipment. On vehicles without air
duct for rear vent in centre console a respective cover is fitted on
heater unit instead. |
| Removing and installing
→ Chapter. |
| 6 - |
Air duct for rear vent in centre console |
| Installed depending on vehicle equipment. On vehicles without air
duct for rear vent in centre console a respective cover is fitted on
heater unit instead. |
| Removing and installing
→ Chapter. |
| 7 - |
Removing and installing rear footwell vent |
| Removing and installing
→ Chapter. |
| 8 - |
Footwell vent on driver side |
| Removing and installing
→ Chapter. |
Questions & answers
Assembly overview - air duct and air distribution in passenger compartment — Volkswagen Golf Mk7
What does the Golf Mk7 AC air duct assembly show?
LHD vehicle shown. Defroster duct, side defroster vents, centre vent duct, footwell ducts, rear console duct and fresh air intake.
Removing
–
Remove plenum chamber cover
→ General body repairs, exterior; Rep. gr.50.
–
...
