Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing bench seat cover and padding

This page covers removing the Volkswagen Golf Mk7 rear bench seat cover and padding — remove the bench seat, then detach the beading all round from the seat frame and from the belt buckle openings.

Removing –  Remove rear bench seat → Chapter.

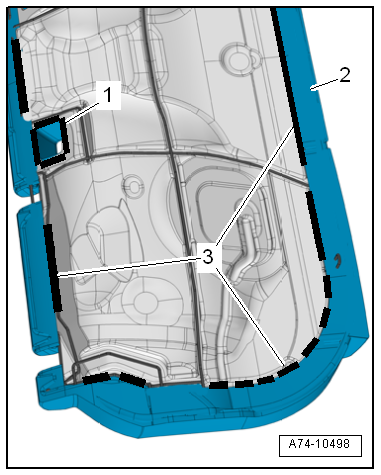

–  Detach beading -3- of seat cover all round from seat frame. –  Detach beading -1- of seat cover from belt buckle openings. –  Remove seat cover -2- with seat padding from seat frame.   Caution Do not damage seat cover. Do not pull on seat cover. Otherwise the seat cover might be torn apart. Installing Install in reverse order, but note the following: –  After installation, check that there are no creases in the seat cover.

Questions & answers

Removing and installing bench seat cover and padding — Volkswagen Golf Mk7

How do I remove the Golf Mk7 rear bench seat cover and padding?

Remove the bench seat. Detach the beading all round from the seat frame. Lift cover and padding off together.
