| 1 - |
Massage control unit -J740- |
- Removing and installing
→ Chapter
- Depends on equipment
- Heated seat cushion for driver seat -Z6
- Heated seat cushion for front passenger seat -Z8
- Depends on equipment
- Removing and installing
→ Chapter
| 3 - |
Backrest heating element |
- Heated backrest for driver seat -Z7
- Heated backrest for front passenger seat -Z9
- Depends on equipment
- Removing and installing
→ Chapter
- Driver seat lumbar support longitudinal adjustment motor -V125
- Driver seat lumbar support height adjustment motor -V129
- Front passenger seat lumbar support longitudinal adjustment motor -V126
- Front passenger seat lumbar support height adjustment motor -V130
- Equipment version
- Assembly overview
→ Anchor
- Removing and installing
→ Chapter
| 5 - |
Massage function button |
- Driver seat massage function button -E670-
- Front passenger seat massage function button -E671
- Depends on equipment
- To remove, carefully lever out of seat trim using removal wedge -3409
| 6 - |
Lumbar support adjustment switch |
- Driver seat lumbar support adjustment switch -E176
- Front passenger seat lumbar support adjustment switch -E177-
- Depends on equipment
- Removing and installing
→ Chapter
- Removing and installing lumbar support
→ Chapter
Questions & answers

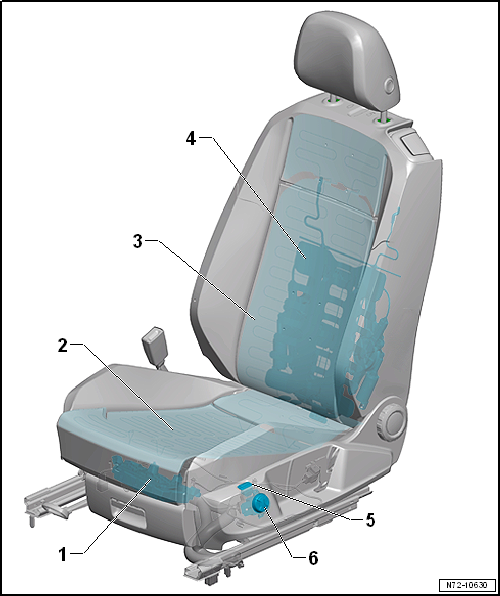

Overview of fitting locations - electrical and electronic components, standard seat, seat of type "ergo Aktiv" — Volkswagen Golf Mk7
What electrical components are in the Golf Mk7 standard/ergo Aktiv seat?
Massage control unit -J740- (if equipped), heated seat cushion and backrest elements, seat occupied sensor, side airbag, and wiring connectors.
1 -
Seat rake adjustment
Driver seat rake adjustment motor -V243
Front passenger seat rake adjustment motor -V244-
Assembly overview
→ Anchor
