| Special tools and workshop equipment
required |
| Vehicle diagnostic tester |
 Note
| Only on vehicles with Climatronic. On vehicles with heater
or air conditioning system with electric/manual controls, the
apertures in the air ducts are sealed with plugs. |
| The illustration shows a left-hand drive vehicle. The
procedure is identical. |
| – |
Remove dash panel end cover
→ General body repairs, interior; Rep. gr.70. |
|
|
|
| – |

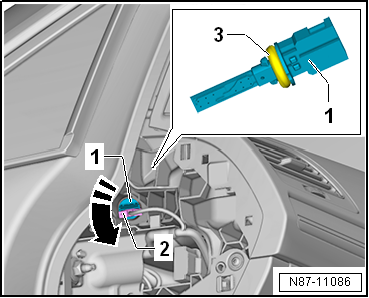

Turn vent temperature sender -1-
in -direction of arrow- and pull it
out of mounting. |
| – |
Disconnect electrical connector -2-. |
| Installation is carried out in the reverse order. When
installing, note the following: |
|
|
|
| – |
Renew seal -3- if damaged or
defective. |
Note
| An incorrectly installed vent temperature sender will cause
flow noise. |
| – |
As a final step, read event memory, and erase any entries
displayed using vehicle diagnostic tester in “Guided fault
finding” mode. |
| Dash panel; Removing and installing dash panel end cover
→ General body repairs, interior; Rep. gr.70 |
|
|
|
