Using torque wrench -V.A.G 1331- and an extra-long 24 mm twelve-point socket, this page covers removing the Volkswagen Golf Mk7 refrigerant pressure sender -G805- — observing all refrigerant safety precautions first.
| Special tools and workshop equipment
required |
|
|
|
| Torque wrench -V.A.G 1331- |
| Commercially available twelve-point socket bit, extra long,
1/2", 24 mm (dimensions: 32x82 mm) |
| – |
Observe safety precautions
→ Chapter „Safety precautions when handling refrigerants“. |
| – |
Comply with notes
→ Chapter „Working on refrigerant circuit“. |
| – |

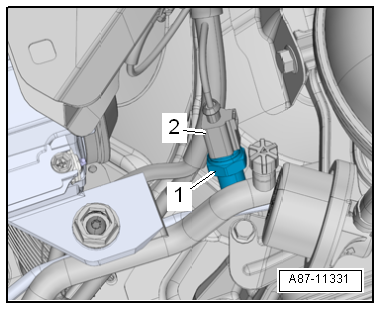

Disconnect electrical connector -2-. |
Risk of freezing injury caused by escaping pressurised refrigerant.There
is a risk of injury to the skin and parts of the body due to
freezing.Always wear safety gloves.Always wear safety goggles.If, when
detaching the pressure sender, refrigerant escapes from the refrigerant
line for longer then 1 second, tighten the pressure sender, and renew
the non-return valve which is defective.Extract refrigerant, and open
the refrigerant circuit immediately afterwards.If more than 10 minutes
passed since the refrigerant has been extracted, do not open the
refrigerant circuit prior to extracting refrigerant anew. Due to
re-evaporation, pressure will be built up in the refrigerant circuit.
| – |
Counterhold refrigerant line using a suitable tool. |
Risk of freezing injury caused by escaping pressurised refrigerant. If
handled improperly, the union may be torn off letting the refrigerant
escape.There is a risk of injury to the skin and parts of the body due
to freezing.Always wear safety gloves.Always wear safety
goggles.Counterhold refrigerant line using a suitable tool. |
|
|
| – |
Unscrew pressure sender -1-
using commercially available long twelve-point socket bit, 1/2",
24 mm. |
| Install in reverse order. |
| Pressure sender for refrigerant circuit -G805-
→ Item. |
|
|
|
