| Removing and installing lock cylinder |
| Special tools and workshop equipment
required |
|
|
|
 Note
| |
The removal and installation sequence is only for the
left lock cylinder. The right side is similar. |
| |

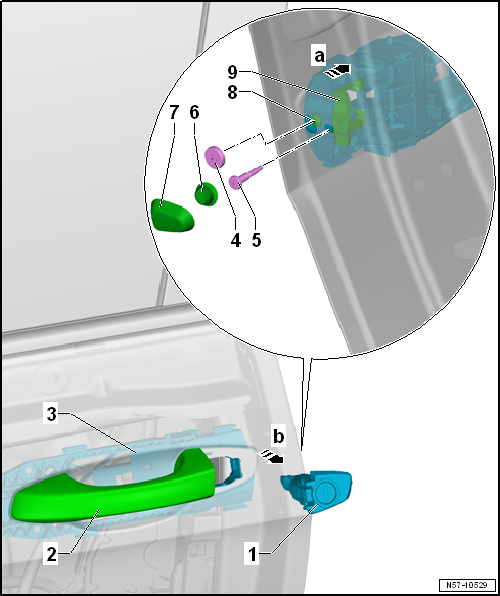

Different covers -4, 6 or 7-
might be installed. |
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove cover cap for lock cylinder
→ Chapter |
| – |
Lift covers -4 and 6- or
-7-. |
| – |
Screw out bolt -8- to stop. |
| – |
Press in bolt -8- with locking
mechanism -9--arrow a-. Only then is the
lock cylinder released. |
| – |
Pull door handle -2- off door. |
| – |
Pull lock cylinder housing -1-
perpendicular -arrow b- to the door out of
the mounting bracket -3-. |
| – |
Pull door handle -2- off door. |
| – |
Push lock cylinder housing -1- into
door handle bracket -3- at a right-angle
-arrow a-. |
| – |
Screw bolts -5 and 8- into mounting
bracket. Bolt -8- is used to pull locking
mechanism -9- in its correct position
-arrow b-. |
Note
| During installation, lock cylinder housing must be pressed against
outer door panel. |
| Further installation is performed in the reverse order of removal. |
| l |
It is essential that a functional check is then performed with the
door open. |
- Bolts
→ Chapter „Assembly overview - door handle and door lock“
