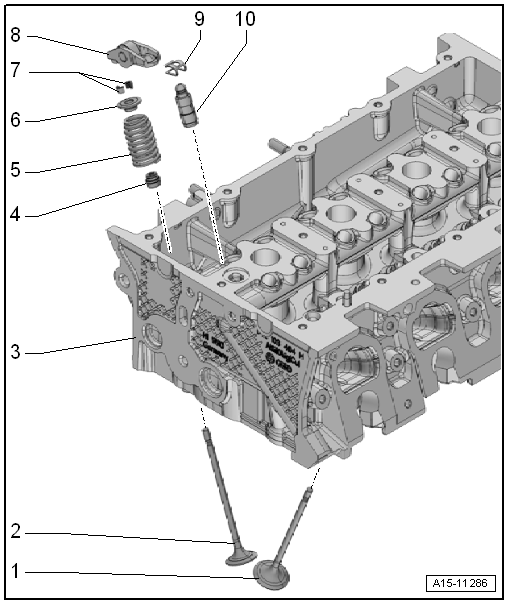

Assembly overview - valves

1 -  Inlet valve
Do not rework. Only lapping in is permitted.
Valve dimensions → Chapter
Checking valve guides → Chapter.
2 -  Exhaust valve
Do not rework. Only lapping in is permitted.
Valve dimensions → Chapter
Checking valve guides → Chapter.
3 -  Cylinder head
4 -  Valve stem seal
Renew → Chapter
5 -  Valve spring
Installation position → Fig.
6 -  Valve spring plate
7 -  Valve cotters
8 -  Roller rocker finger
Removing and installing → Chapter „Removing and installing camshaft housing“
Mark installation position for re-installation.
Check roller bearing for ease of movement.
Lubricate contact surfaces before installing.
9 -  Securing clip
For hydraulic compensation element.
10 -  Hydraulic compensation element
Do not interchange
Oil contact surface



Installation position of valve spring
The end with smaller diameter -a- must face towards valve spring plate.
The end with larger diameter -b- must face towards cylinder head.
