Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing bench seat / individual seats

This page covers removing the Volkswagen Golf Mk7 rear bench seat — move the front seats fully forward, unclip all four ISOFIX guides from their anchors, then pull the bench seat free with both hands.

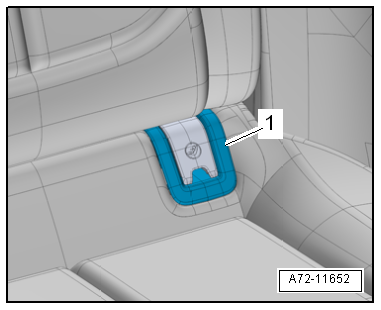

Removing –  Move front seats as far forwards as possible. –  Unclip guides -1- for ISOFIX child seat anchor (qty. 4) from anchors → Chapter.

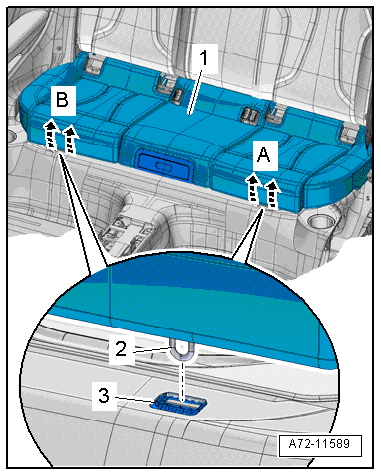

–  Grasp with one hand on one side under frame of rear bench seat. –  Using both hands, pull rear bench seat -1- upwards with a firm jerk -arrows A-. This will disengage wire hook -2- of rear bench seat from mounting grommet -3-. –  Repeat the procedure on the other side of the rear bench seat -arrows B-.

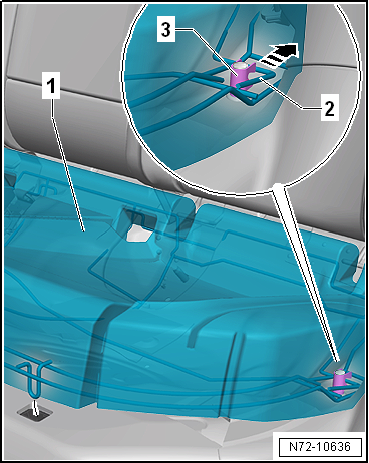

–  Slightly lift up rear bench seat -1- at front and push wire frame -2- towards rear out of arresters -3-. –  Remove rear bench seat from vehicle.

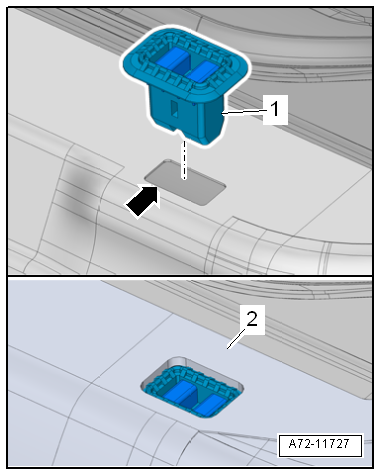

Installing Install in reverse order, but note the following: –  Check body apertures -arrow- for deformation. –  Repair any deformation using a plastic head hammer.   Note Slight remaining deformations are permissible. –  Lift up floor covering -2- and press new mounting grommets -1- into body aperture -arrow- until they engage audibly. –  Arrange floor covering around grommet as shown in illustration.   Note The floor covering must not cover the grommet.

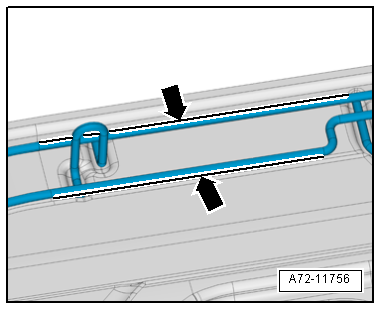

–  Before installing the rear bench seat, check if the wire frame is aligned properly in the highlighted area -arrows-. –  If the wire frame is bent, it must be bent back until it is properly aligned again. –  Fit rear bench seat and press wire hooks firmly into mounting grommets. –  Ensure that the wire hooks are properly engaged in the mounting grommets.
