 Note
| |
The core of the window slot outer seal is a metal insert. |
| |
If it is bent or distorted, the window slot outer seal
cannot be straightened out anymore. It will remain “wavy”. |
| |
Therefore, the window slot outer seal must be pulled off
and pressed on evenly, without bending or distorting it. |
| |
Removal and installation are only described for the left
window slot outer seal. Removal and installation of the right
window slot outer seal are similar. |
|
|
|
| – |

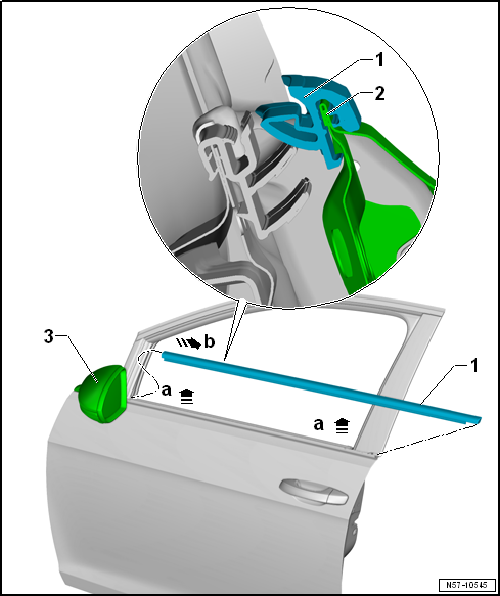

Slightly pull window slot outer seal -1-
uniformly off door flange -2--arrows a-.
Make sure not to bend the side strip. |
| – |
Pull out window slot outer seal -1-
from beneath exterior mirror -3--arrow b-. |
Note
| |
The use of assembly aid is allowed. |
| |
The use of striking tools is not allowed for installing window
slot outer seal. |
| – |
Slide in window slot outer seal -1-
under exterior mirror -3--arrow a-. |
| – |
Align window slot outer seal -1- with
B-pillar and press it uniformly and by hand onto door flange-2--arrows
b-. |
Questions & answers
Removing and installing window slot outer seal — Volkswagen Golf Mk7
What is the Golf Mk7 window slot outer seal?
A rubber seal along the top of the door that wipes against the outside of the glass. It has a metal core — if bent, it goes permanently wavy and must be replaced.
Can I straighten a bent Golf Mk7 window outer seal?
No. The metal core cannot be straightened. A bent or wavy seal must be replaced with a new one.
