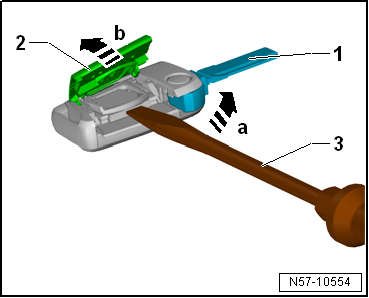

Folding out key bit -1--arrow a-. |
| – |
Use a small screwdriver -3- to
raise the cover of battery compartment
-2--arrow b-. |
|
|
|
| – |

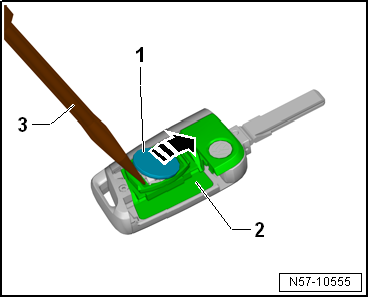

Use a small screwdriver -3- to
lift battery -1- out of battery
compartment -2--arrow-. |
 Note
| |
Before installing battery, always press any key once. |
| |
This resets the transmitter unit, so that it can now
recognize a new battery. |
| Ensure correct polarity and mounting position when
installing battery. The positive pole is marked. |
|
|
|
| – |

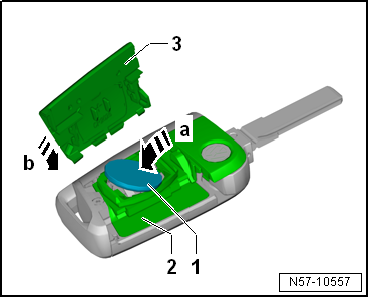

Insert battery -1- into battery
compartment -2- by pressing
slightly -arrow a-. |
| – |
Assemble cover of battery compartment
-3- and transmitter unit -arrow b-. |
| – |
The ignition key must be synchronised now
→ Anchor. |
| Synchronizing ignition key |
|
|
|
| – |

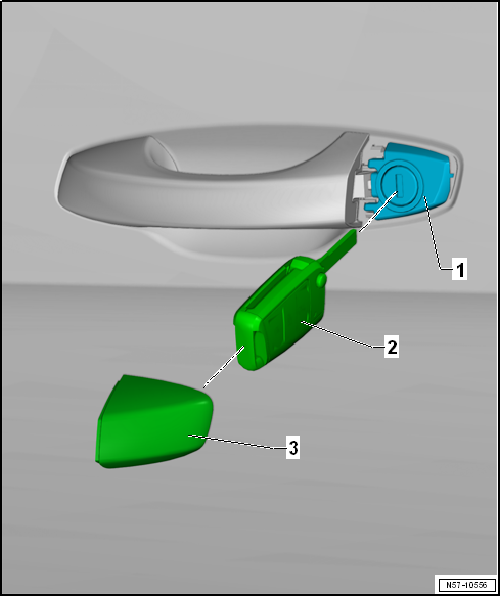

Remove cover cap for lock cylinder -3-
→ Chapter. |
| – |
Hold ignition key -2- on lock cylinder
-1-, and press “Open” button. |
| – |
Unlock vehicle with the ignition key -2-
via lock cylinder -1- within a minute. |
