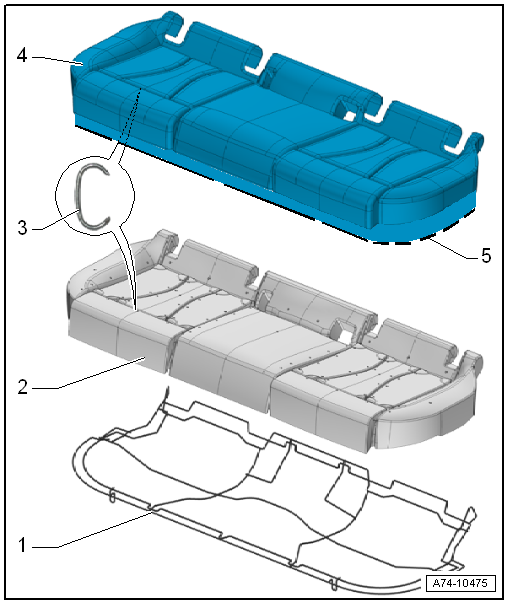

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - cover and padding for bench seat
This assembly overview covers the Volkswagen Golf Mk7 rear bench seat cover and padding: the seat frame and the upholstery clip attaching the cover to the padding.
| 1 - | Seat frame |
| 2 - | Seat padding |
- Allocation → Electronic Parts Catalogue
- Removing and installing seat cover and seat padding → Chapter
- Separating seat cover from seat padding → Chapter
| 3 - | Upholstery clip |
- For attaching seat cover to seat padding
- Renew after removal
- When installing, fit in same location using upholstery clip pliers -V.A.G 1634
| 4 - | Seat cover |
- Different equipment versions
- Allocation → Electronic Parts Catalogue
- Removing and installing seat cover and seat padding → Chapter
- Separating seat cover from seat padding → Chapter
- After installation, check that there are no creases in seat
| 5 - | Channel |
- Sewn to seat cover
- For attaching seat cover to seat frame
