 Note
-
| |
Removal and installation are described for the mirror
cover trim on driver side. Follow same instructions for the
front passenger side as appropriate. |
-
| |
Removal and installation are illustrated for 4-door
vehicles. Removal and installation on 2-door vehicles are
analogous. |
|
|
|
| – |
Remove front door trim
→ Chapter. |
| – |

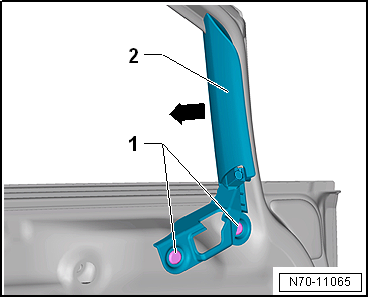

Remove clips -1- for mirror
cover trim -2-. |
| – |
Pull mirror cover trim -2-
towards rear off front door -arrow-. |
Note
| Before installing, check all fasteners for damage and
renew if necessary. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing mirror cover trim — Volkswagen Golf Mk7
How do I remove the Golf Mk7 mirror cover trim (interior)?
Driver side described. Unclip the triangular mirror cover from the door frame corner.
Note
Removal and installation are described for the trim panel on
driver side. Follow same instructions for the front passenger side
as appropriate.
...
The inner door handle is clipped into trim panel.
Note
Removal and installation are described for the trim
...
