Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing glove compartment cover

This page covers removing the Volkswagen Golf Mk7 glove compartment cover — remove the compartment, place it on a soft surface, move the lid to service position, and drive out the hinge pins with a drift.

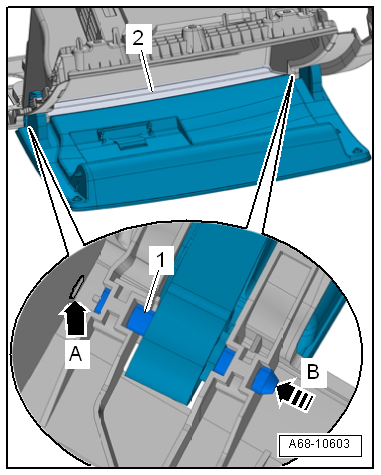

Removing –  Remove glove compartment → Chapter. –  Place glove compartment on a soft surface. –  Move glove compartment lid to service position → Chapter. –  Drive out left and right hinge pins -1- in -direction of arrow B- using a drift. –  Remove glove compartment lid from glove compartment. Installing   Note Before installing, check all fasteners for damage and renew if necessary. Installation is carried out in reverse order.

Questions & answers

Removing and installing glove compartment cover — Volkswagen Golf Mk7

How do I remove the Golf Mk7 glove compartment cover?

Remove the glove box, place it on a soft surface, move the lid to service position, and detach the cover from the box body.
