Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing oil pressure switch for reduced oil pressure -F378-

Using jointed wrench 24 mm -T40175-, this page covers removing the Volkswagen Golf Mk7 reduced oil pressure switch -F378- — pull the activated charcoal solenoid valve -N80- off the intake manifold first.

Special tools and workshop equipment required

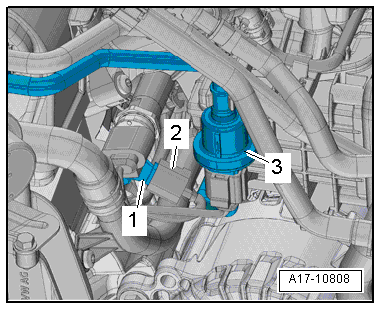

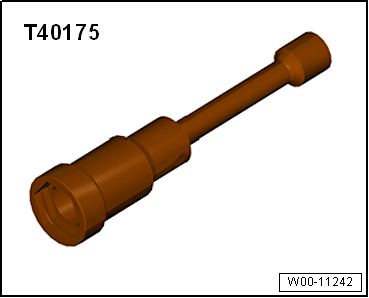

Jointed wrench 24 mm -T40175- Removing –  Pull activated charcoal filter solenoid valve 1 -N80--3- off intake manifold and push it downwards slightly.

–  Disconnect electrical connector -2-.   Note Place a cloth underneath to catch escaping engine oil. –  Unscrew oil pressure switch for reduced oil pressure -F378--1-. Installing Installation is carried out in the reverse order; note the following:   Note The seal cannot be replaced individually. If removed, oil pressure switch must be renewed. Insert new oil pressure switch for reduced oil pressure -F378- immediately in hole to avoid loss of oil. –  Check oil level → Booklet. Specified torques → Chapter „Assembly overview - oil filter/oil pressure switch“

Questions & answers

Removing and installing oil pressure switch for reduced oil pressure -F378- — Volkswagen Golf Mk7

How do I remove the Golf Mk7 1.4 TSI reduced-pressure switch -F378-?

Same procedure as -F1-: disconnect, unscrew from housing, renew seal.
