Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - A-pillar trim

This assembly overview covers the Volkswagen Golf Mk7 A-pillar trim, left side shown (right is a mirror image): the upper trim and the trim for the triangular window, each with its own removal procedure.

  Note
The illustration shows the A-pillar trims on the left side. The right-hand side is similar (mirror image of left-hand side).

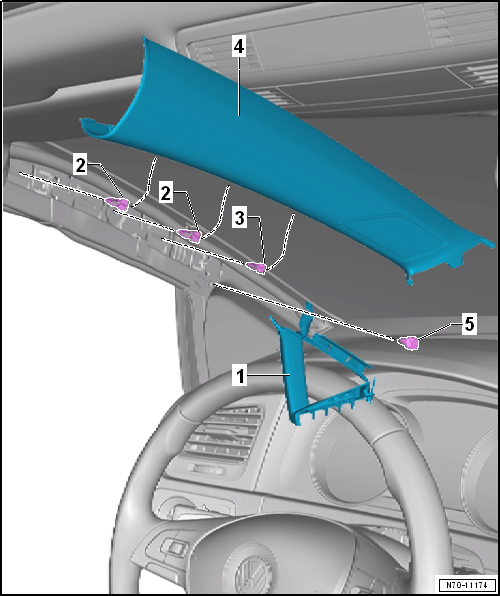

Upper A-pillar trim and trim for triangular window

Assembly overview - A-pillar trim

1 -  Trim for triangular window
  • Removing and installing → Chapter
2 -  Retaining clips
  • With barbs
  • Insert into trim
  • Remove any retaining clips left in body mountings using removal tool -T40280
  • Always renew retaining clips
3 -  Retaining clip
  • Insert into trim
  • Remove any retaining clips left in body mountings using removal tool -T40280-
  • Renew any damaged or deformed retaining clips
4 -  Upper A-pillar trim
  • Removing and installing → Chapter
5 -  Clip
  • Remove and install together with trim for triangular window
  • Insert into trim
  • Renew clip if damaged or deformed

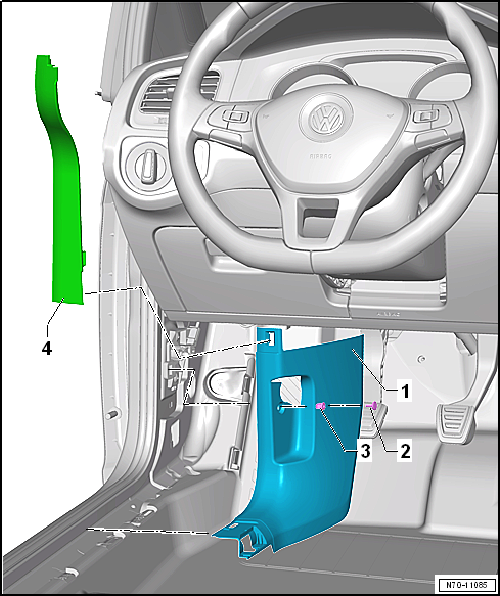

Lower A-pillar trim, LHD vehicles

Lower A-pillar trim, LHD vehicles

1 -  Lower A-pillar trim
  • Removing and installing → Chapter
2 -  Spreader clip
3 -  Spreader plug
4 -  A-pillar gap cover
  • Removing and installing → Chapter

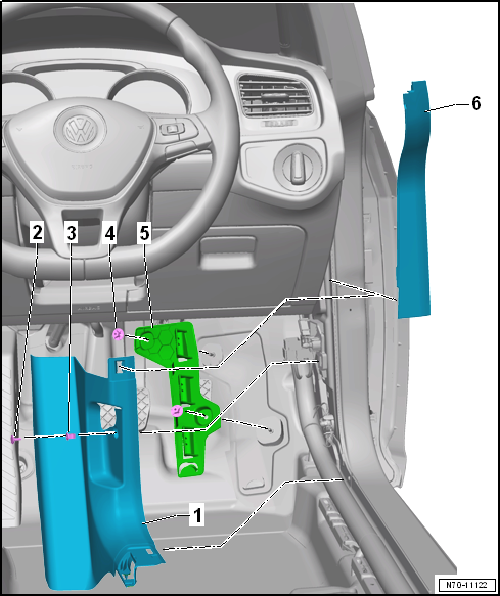

Lower A-pillar trim, RHD vehicles

Lower A-pillar trim, RHD vehicles

1 -  Lower A-pillar trim
  • Removing and installing → Chapter
2 -  Spreader clip
3 -  Spreader plug
4 -  Nut
  • Qty. 2
  • 2 Nm
5 -  Bracket
  • Removing and installing → Chapter
6 -  A-pillar gap cover
  • Removing and installing → Chapter
