 Note
| Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Removal wedge -3409 |
| – |
Adjust seat to fully upright position. |
| – |

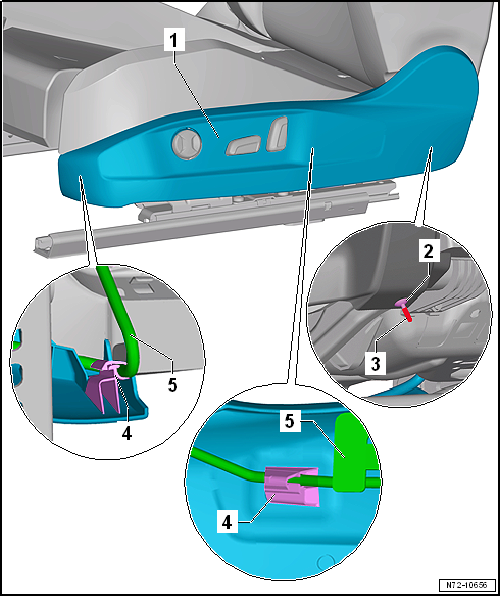

Press in clamping pin -3-. |
| – |
Lever off spreader rivets -2- using
removal wedge -3409-. |
| – |
Open retainer -4- on trim
-1- working from bottom. |
| – |
Thread out trim -1- at rear. |
| – |
Remove trim -1- towards front from
bracket -5-. |
| Installation is carried out in reverse order. |
|
|
|
