Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing oil level and oil temperature sender -G266-

This page covers removing the Volkswagen Golf Mk7 oil level and temperature sender -G266- — drain the engine oil, disconnect the connector, then undo the retaining nuts.

Removing
–  Drain off engine oil.

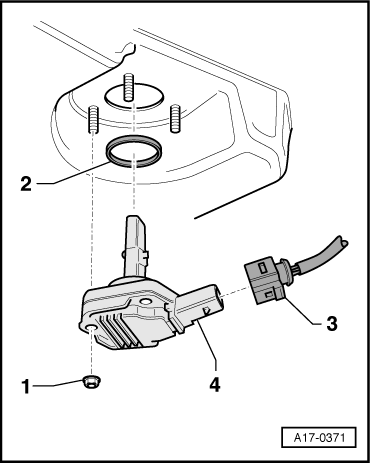

–  Disconnect electrical connector -3-.
–  Undo nuts -1- and remove oil level and oil temperature sender -G266--item 4-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Renew seal -2-.
–  Replenish engine oil and check oil level → Booklet.
Specified torques
→ Chapter „Assembly overview - sump and oil pump“


Removing and installing oil level and oil temperature sender -G266-

    Questions & answers

    Removing and installing oil level and oil temperature sender -G266- — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 1.4 TSI oil level/temp sender -G266-?
    Drain oil, remove the lower sump, disconnect the sender connector and unbolt from the upper sump.
