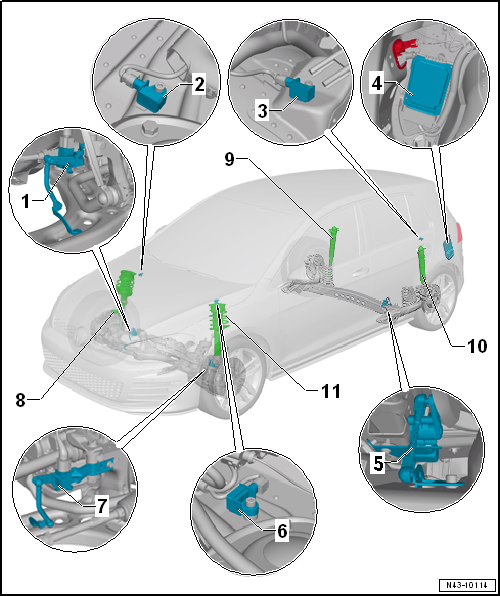

| 1 - |
Front right vehicle lever sender -G289- |
| Removing and installing
→ Chapter |
| 2 - |
Front right body acceleration sender -G342- |
| Removing and installing
→ Chapter |
| 3 - |
Rear left body acceleration sender -G699- |
| Location: on left suspension strut dome behind left luggage
compartment side trim. |
| Removing and installing
→ Chapter |
| 4 - |
Electronically controlled damping control unit -J250- |
| Removing and installing
→ Chapter |
| Location: electronically controlled damping control unit -J250- is
installed behind left luggage compartment side trim. |
| Function Replace control unit must be
performed with → Vehicle
diagnostic tester if electronically controlled damping
control unit -J250- is renewed. |
| If the reference position has been re-adapted, the front camera for
driver assist systems must be recalibrated on vehicles with lane
departure warning function
→ Chapter „Calibrating front camera for driver assist systems“. |
| 5 - |
Rear left vehicle level sender -G76- |
| Removing and installing
→ Chapter |
| 6 - |
Front left body acceleration sender -G341- |
| Removing and installing
→ Chapter |
| 7 - |
Front left vehicle level sender -G78- |
| Removing and installing
→ Chapter |
| 8 - |
Shock absorber with front right shock absorber damper adjustment
valve -N337- |
| Removing and installing suspension strut
→ Chapter. |
| Repairing suspension strut
→ Chapter. |
| 9 - |
Shock absorber with rear right shock absorber damper adjustment
valve -N339-. |
| Removing and installing shock absorber
→ Chapter. |
| Repairing shock absorber
→ Chapter. |
| 10 - |
Shock absorber with rear left shock absorber damper adjustment valve
-N338-. |
| Removing and installing shock absorber
→ Chapter. |
| Repairing shock absorber
→ Chapter. |
| 11 - |
Shock absorber with front left shock absorber damper adjustment
valve -N336- |
| Removing and installing suspension strut
→ Chapter. |
| Repairing suspension strut
→ Chapter. |
