Volkswagen Golf Mk7 Service & Repair Manual: Identification plates

This page explains the Volkswagen Golf Mk7 identification plate showing refrigerant R134a name, capacity and designation — with a permissible tolerance of 500 ± 15 g for the charge weight.

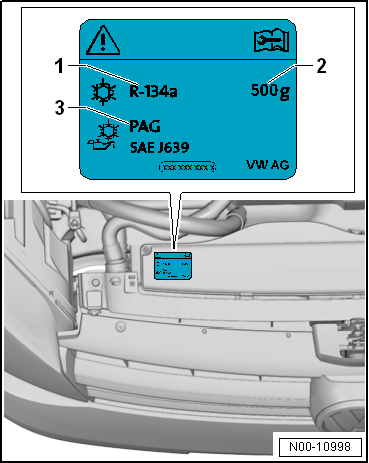

Identification plate with capacities for refrigerant R134a and refrigerant oil 1 -  Name of refrigerant 2 -  Refrigerant capacity 3 -  Designation of refrigerant   Note A tolerance of 500 ± 15 g is permissible although not indicated on the identification plate. Capacities for refrigerant R134a and refrigerant oil → Chapter „Technical data“.

Questions & answers

Identification plates — Volkswagen Golf Mk7

Where is the Golf Mk7 AC identification plate?

On the compressor or near the service ports. It shows the refrigerant type (R134a), total charge weight and refrigerant oil quantity.

Notes for vehicles with start-stop system

Observe the safety precautions for vehicles with a start-stop system → Chapter. If a start-stop system is installed, the following a ...
