| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1783- |
Note
| The removal and installation sequence is only for the left
adjustment unit with motor. The right side is similar. |
| – |
Remove mirror glass
→ Chapter. |
| – |

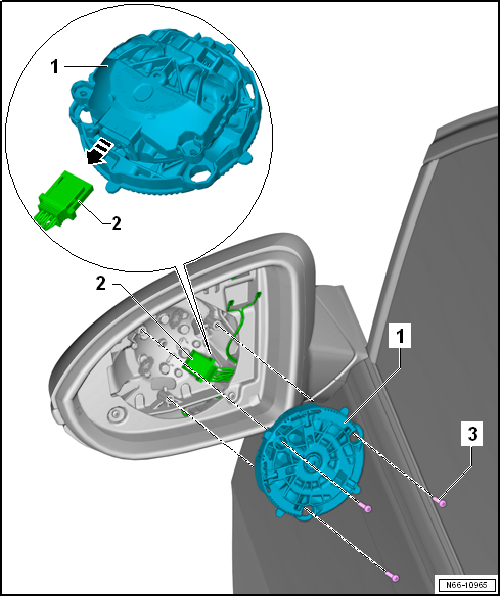

Unscrew bolts -3- (qty. 3) and remove
adjustment unit -1- from mirror mounting. |
| – |
Swivel adjustment unit together with motor -1-
to the side and pull off connector -2-. |
| – |
Connect connector -2- to
adjustment unit -1-. |
| – |
Place adjustment unit -1- on
mirror mounting and fix in place by tightening bolts
-3- (qty. 3). |
| – |
Install mirror glass
→ Chapter „Removing and installing mirror glass“. |
|
