Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - tank flap unit

This assembly overview identifies the Volkswagen Golf Mk7 tank flap unit: the fuel tank flap, the unit housing, its water drain hose routed between the wheel housing and liner, the electric actuator, and the 1.5 Nm mounting bolt.

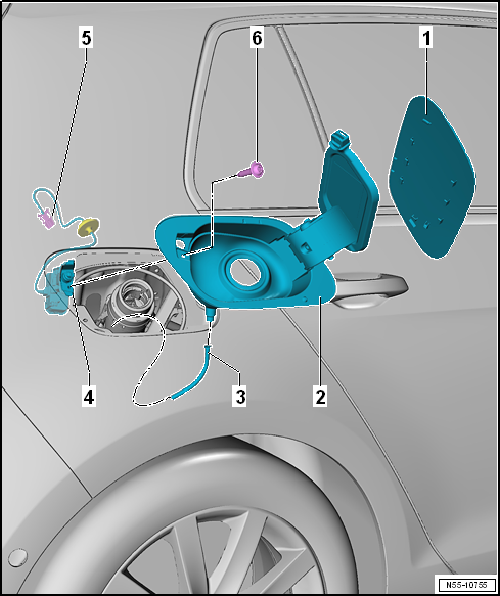

Assembly overview - tank flap unit

1 -  Fuel tank flap
–  Removing and installing → Chapter.
2 -  Tank flap unit
  • Removing and installing → Chapter
3 -  Water drain hose
  • Routed between wheel housing and wheel housing liner
4 -  Actuator
  • Removing and installing → Chapter
5 -  Electrical connections
6 -  Bolt
  • 1.5 Nm

    Questions & answers

    Assembly overview - tank flap unit — Volkswagen Golf Mk7

    What does the Golf Mk7 tank flap assembly overview show?
    The fuel tank flap, tank flap unit housing, water drain hose, actuator, and bolt torque values (1.5 Nm for the flap bolts).
    What is the Golf Mk7 tank flap actuator?
    An electric motor that locks and unlocks the tank flap in conjunction with the central locking system.
