Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - short noise insulation

This assembly overview covers the Volkswagen Golf Mk7 short noise insulation panel — removed by taking out its bolts and pulling the panel backward off the lock carrier.

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

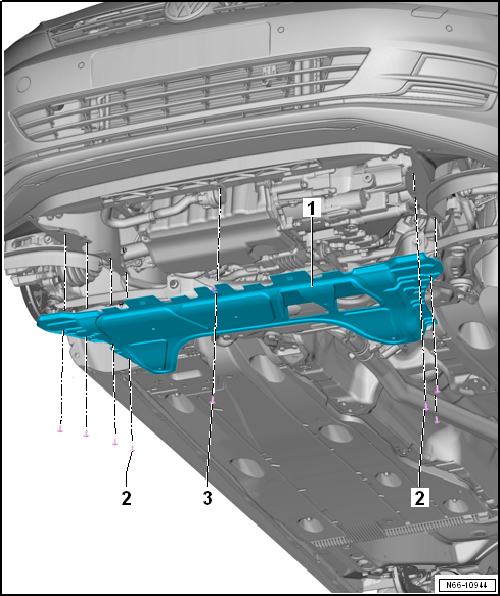

Assembly overview - short noise insulation

1 -  Short noise insulation
  • Removing
–  Remove bolts -2- and -3-
–  Pull out noise insulation off lock carrier to the back.
2 -  Bolt
  • Qty. 3 on left
  • Qty. 4 on right
  • 2.0 Nm
3 -  Bolt
  • 1 on lock carrier
  • 1 Nm

    Questions & answers

    Assembly overview - short noise insulation — Volkswagen Golf Mk7

    What is the Golf Mk7 short noise insulation?
    A panel that covers part of the front underbody to reduce road and wind noise. It is removed by undoing bolts and spreader rivets.
