Remove fuel delivery unit
→ Chapter. |
| – |

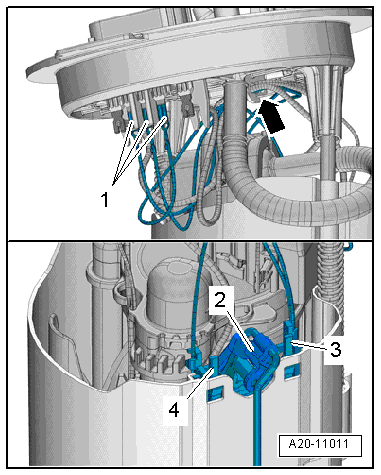

Note colour assignment of cables -1-
for re-installation. |
|
|
|
| – |
Release and pull off connectors -1-
on sealing flange. |
| – |
Disengage and move clear electrical wiring at retainer
-arrow-. |
| – |
Release locking lugs -3- and
-4- from tabs. |
| – |
Pull out fuel gauge sender -G--2-
upwards. |
| – |
Bend back the locking hooks of the connectors. |
| – |
Install in reverse order. In the process, note the
following: |
| – |
Note colour assignment of contacts. |
| – |
Check connectors are secured properly by pulling. |
| – |
Insert fuel gauge sender -G- into guide on fuel delivery
unit and press down until it engages. |
| – |
Install fuel delivery unit
→ Chapter. |
|
|
|
Questions & answers
Removing and installing fuel gauge sender -G-, vehicles with front-wheel drive — Volkswagen Golf Mk7
How do I remove the Golf Mk7 FWD fuel gauge sender -G-?
Remove the fuel delivery unit first, then detach the gauge sender from the unit. Do not bend the float arm.
Removing
–
Remove fuel delivery unit
→ Chapter.
–
Disconnect connector -4- from
r ...
