Remove dash panel
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove the air duct for the defroster vent
→ Chapter. |
| – |
Unbolt air distribution flap control motor
→ Chapter. |
|
|
|
| – |

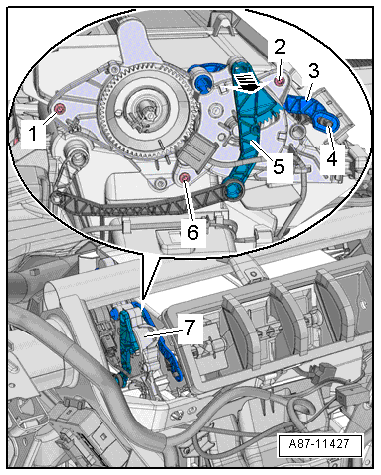

Carefully press off the actuating lever
-5--arrow-. |
| – |
Unscrew bolts -1-,
-2- and -6-. |
| – |
Remove actuation unit -7-
upwards. |
| – |
Installation is carried out in the reverse order. When
installing, note the following: |
 Note
| Check operation of flaps and hinge mechanism before fitting. |
| Make sure levers and shafts are properly fitted in the
mounts. |
|
|
|
| – |

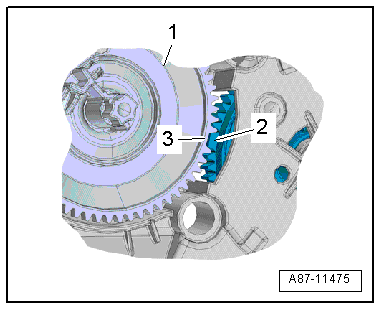

Check for correct mutual positioning of the two gear wheels. |
| The rectangular tooth -2- must
engage in the gap -3- at the gear
wheel -1-. |
|
|
|
| – |
When fitting actuation unit, actuating lever
-3- must engage in lever
-4- of centre vent flap. |
| → Chapter „Assembly overview - heater and air conditioning unit“ |
| Dash panel; Assembly overview - dash panel
→ General body repairs, interior; Rep. gr.70. |
|
|
|
