| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation are described only for the right
door handle bracket. The right side is similar. |
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove rear door trim
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove inner door cover
→ Chapter. |
| – |
Remove door handle
→ Chapter. |
| – |

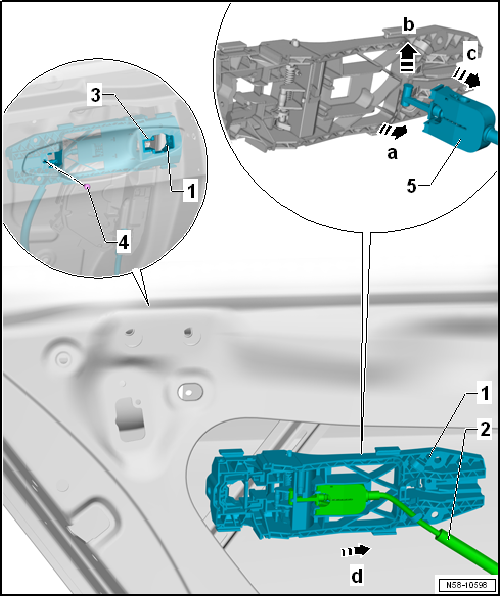

Unscrew bolt -4- and remove base
-3-. |
| – |
Push door handle bracket -1- slightly
towards rear, and remove it from door -arrow d-. |
| – |
Release holding device -5- and swivel
it out of mounting in door handle bracket -arrow
a-. |
| – |
Lift cable bolt out of mounting -arrow b-. |
| – |
Take cable -2- out of door handle
bracket -1--arrow c-. |
| – |

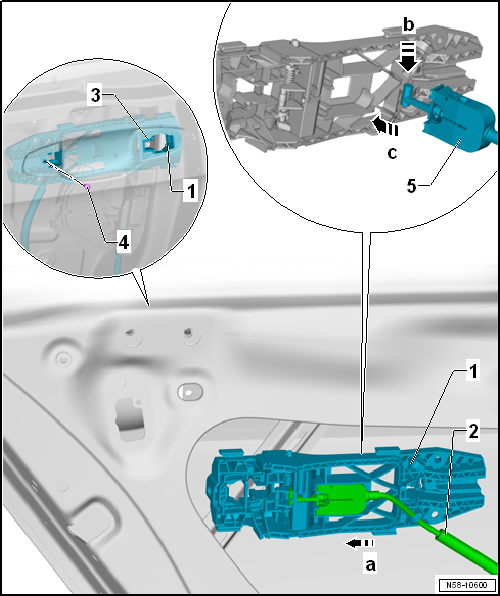

Insert cable -2- into door handle
bracket -1-. |
| – |
Push cable bolt into mounting -arrow b-. |
| – |
Swivel holding device -5- into mounting
of door handle bracket -arrow c- and
engage. |
| – |
Guide door handle bracket -1- into door
-arrow a-. |
| – |
Slightly push door handle bracket towards front. |
| – |
Insert base -3- and tighten bolts
-4-. |
| Further installation is performed in the reverse order of removal. |
| |
Door handle bracket
→ Chapter „Assembly overview - door handle and door lock“ |
