| Special tools and workshop equipment
required |
|
|
|
| – |
Remove footwell cover on driver side
→ General body repairs, interior; Rep. gr.68. |
|
|
|
| – |
First press brake pedal in direction of brake servo and
hold. |
| – |

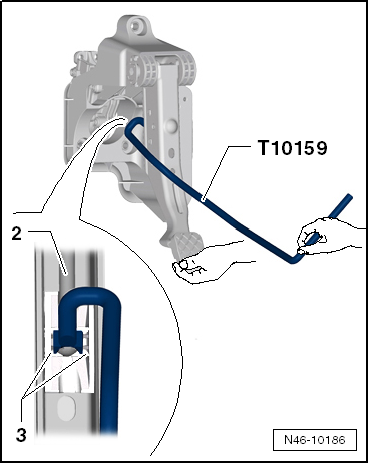

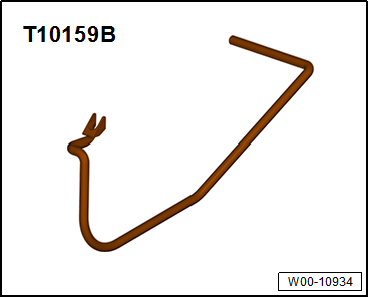

Insert release tool -T10159B- and pull it in direction of
driver seat. When doing this, counterhold on brake pedal (at
this stage, the pedal must not be allowed to move towards driver
seat). This action will press retaining lugs
-3- of mounting off ball head of
plunger rod -2-. |
| For the sake of clarity, separation of brake pedal from
brake servo is shown with pedal cluster removed. |
| – |
Pull release tool -T10159B- and brake pedal together towards
driver seat. (This action will pull the brake pedal off the ball
head of the plunger rod). |
| Footwell cover on driver side
→ General body repairs, interior; Rep. gr.68. |
|
|
|
