Using shackle -10-222 A/12-, hooks -10-222 A/2- and workshop hoist -VAS 6100-, this page covers separating the Volkswagen Golf Mk7 engine from its gearbox once the assembly is on the engine support.
| Special tools and workshop equipment
required |
|
|
|

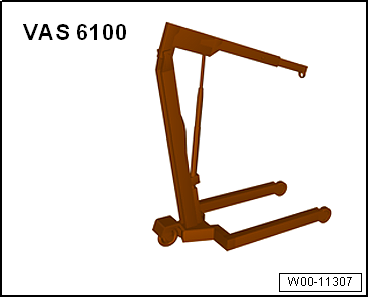

| Workshop hoist -VAS 6100- |
| Engine/gearbox assembly removed and attached to engine
support T10497. |
| – |
Remove starter
→ Electrical system; Rep. gr.27. |
|
|
|
| – |

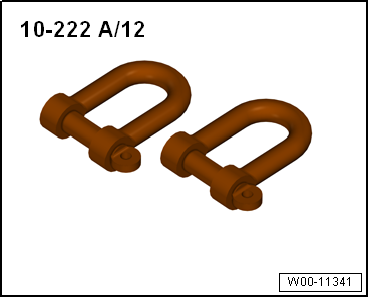

Bolt shackle -10 - 222 A /12- to gearbox. |
| – |

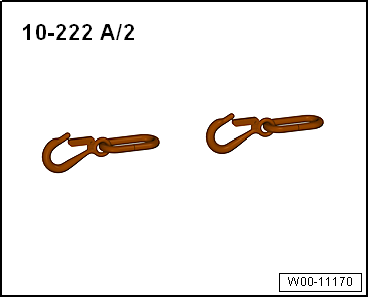

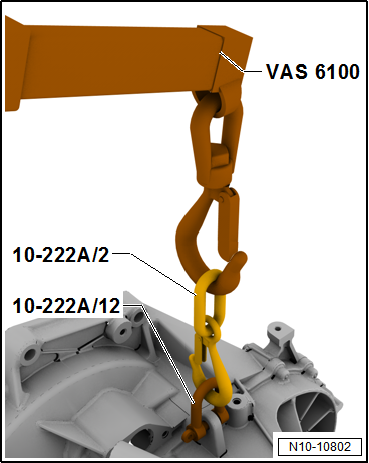

Engage work shop hoist -VAS 6100- with hook -10 - 222 A /2-
on shackle -10 - 222 A /12-. |
|
|
|
| – |

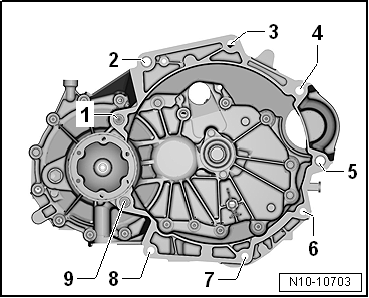

Remove bolts -1, 2, 3, 6, 7, 8, 9-
securing gearbox to engine. |
| – |
Pull gearbox off engine. |
|
|
|
