Using removal wedge -3409-, remote control -V.A.G 1348/3A- and fuel extractor -VAS 5190-, this page covers emptying the Volkswagen Golf Mk7 fuel tank on engine code CWVA when the pump is still working correctly.

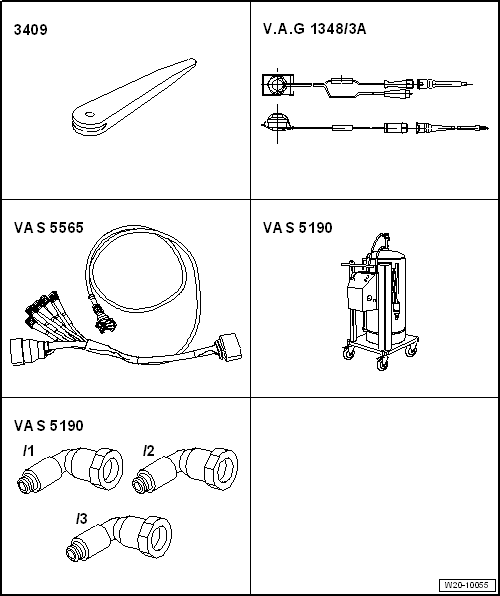

| Special tools and workshop equipment required |
| Remote control -V.A.G 1348/3A- |
| Test instrument adapter/DSO (5-pin) -VAS 5565- |
| Fuel extractor -VAS 5190- |
| Fuel extractor -VAS 5190 A- for E 85 fuel (not shown). |
| Adapter for fuel extraction -VAS 5190- |
 Note
| To extract E 85 fuel, use only fuel extractor -VAS 5190 A-! |
|
|
|
| Auxiliary measuring set -V.A.G 1594C- |
Note
|
|
|
| If the fuel extraction unit -VAS 5190- is still fitted with
the extraction hose with a fixed tip, the extraction hose must
be replaced with the version with a screw-in tip. |
Note
| Separate plug-in connectors
→ Chapter. |
| – |
Observe safety instructions
→ Chapter. |
| – |
Observe rules for cleanliness
→ Chapter. |
|
|
|
| – |

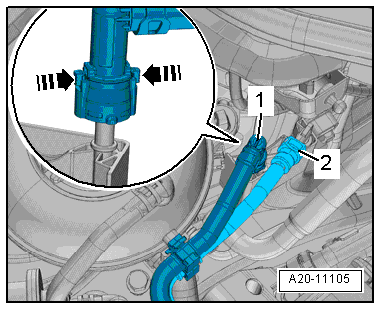

Pull off fuel supply line -1-.
Separate plug-in connectors
→ Chapter. |
The fuel system is pressurised.Risk of injury due to fuel which may
spurt out.Wear eye protection.Wear protective gloves.Release pressure:
place clean cloth around connection and carefully open connection.
| – |
Collect escaping fuel with a cleaning cloth. |
|
|
|
| – |

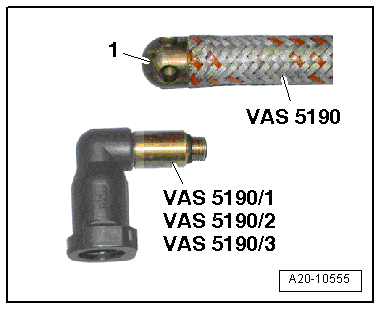

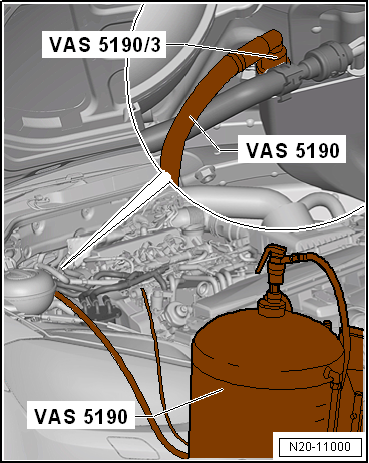

Connect fuel extractor -VAS 5190- with adapter for fuel
extractor -VAS 5190 /3- to fuel supply line. |
| – |
Secure earth wire of fuel extractor to a bare metal part of
the body. |
| – |
Remove right rear seat
→ General body repairs, interior; Rep. gr.72. |
|
|
|
| – |
Partially detach cover -1- in
floor covering at parting line -arrow-. |
| – |
Do not detach cover completely from floor covering in order
to ensure it is reinstalled in the correct installation
position. |
| – |
Detach it just enough that the cover can be folded upwards. |
| – |
Fold up cover in -direction of arrow-. |
| – |
Remove rear bench seat
→ General body repairs, interior; Rep. gr.72. |
|
|
|
| Continuation for all vehicles: |
| – |
Unclip cover -1- for flange at
retaining tabs -arrows-, using
removal wedge -3409-. |
|
|
|
| – |
Unclip sealing grommet -1-
downwards from cover -2-. |
| – |
Push cover -2- back along
wiring harness -3-. |
|
|
|
| – |

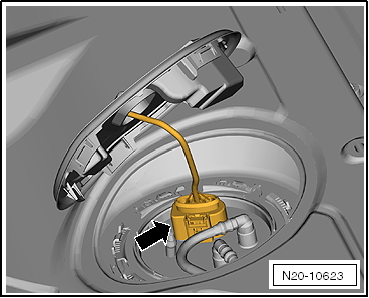

Release and pull off connector -arrow-. |
|
|
|
| – |
Connect test instrument adapter/DSO (5-pin) -VAS 5565- to
connector and fuel delivery unit. |
| – |
Connect remote control -V.A.G 1348/3A- to test instrument
adapter/DSO (5-pin) -VAS 5565- and to battery positive (+). |
Note
| This step serves only to have the fuel pump running when the
engine is stopped. |
|
|
|
| – |

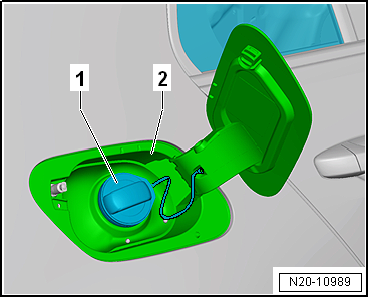

Open tank flap unit -2-. |
| – |
Clean area around fuel filler neck. |
| – |
Unscrew cap -1- for fuel filler
neck. |
| – |
Operate remote control -V.A.G 1348/3A- and shut-off tap on
fuel extractor -VAS 5190- until fuel tank is empty. |
Note
| Risk of damage to fuel system pressurisation pump -G6- when
the fuel tank is empty. The fuel system pressurisation pump -G6-
must not run »dry«. |
|
|
|
