Using assembly tool -T10478 B-, this page covers renewing the inlet camshaft oil seal at the pulley end on CPTA, CHPA, CZEA, CZDA engines — detach the toothed belt from the camshafts first.
| Special tools and workshop equipment
required |
|
|
|
| – |
Detach toothed belt from camshafts
→ Chapter. |
|
|
|
| – |
Unscrew bolt -2- and remove
camshaft sprocket. |
|
|
|
| – |

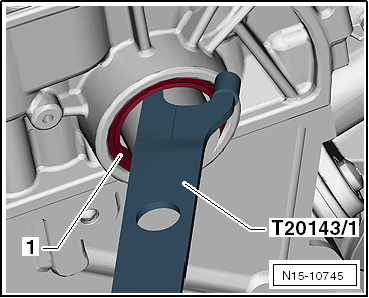

Remove seal -1- using extractor
hook -T20143/1-. |
 Note
| Do not lubricate new seal. |
|
|
|
| – |
Fit seal -1- over fitting
sleeve -T10478/3- onto guide sleeve -T10478/2-. |
| Installation position: closed end of seal faces fitting
sleeve. |
| – |
Separate fitting sleeve and guide sleeve. |
|
|
|
| – |

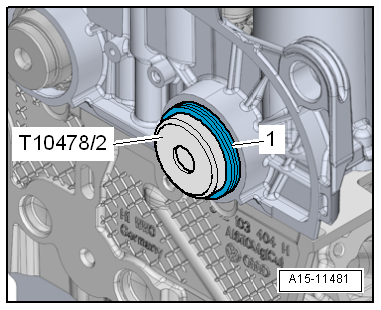

Fit guide sleeve -T10478/2- with oil seal
-1- onto camshaft. |
|
|
|
| – |
Draw in seal to stop using thrust piece -T10478/1A- and bolt
-1- for camshaft pulley. |
| – |
Install toothed belt (adjust valve timing)
→ Chapter. |
|
|
|
