Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing short centre underbody cover

This page covers removing the Volkswagen Golf Mk7 short centre underbody cover — unclip the spreader rivet and remove the retaining bolt to free the panel.

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

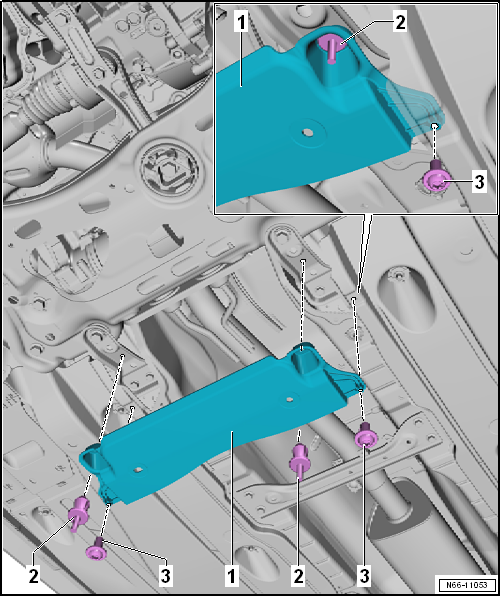

Removing and installing short centre underbody cover

Removing
Unclip spreader river -2- and remove centre underbody panels.
–  Remove bolt -3-.
Installing
Installation is carried out in reverse order.
Specified torques
  Bolt → Item
