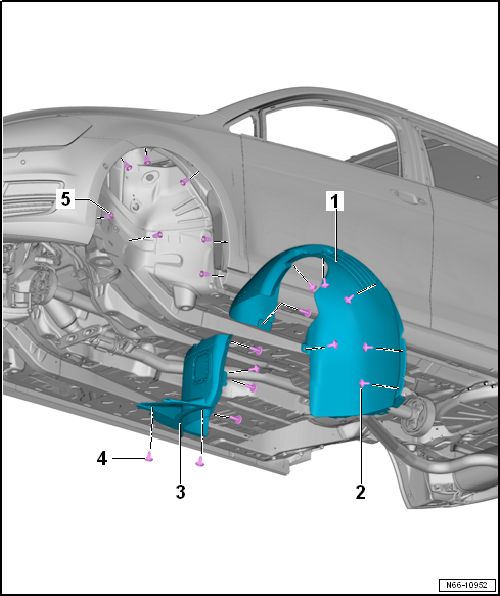

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front wheel housing liner
This assembly overview covers the Volkswagen Golf Mk7 front wheel housing liner (PP/EPDM material, left side shown, right similar), noting minor model-dependent differences may apply.
Note-
Minor differences may be encountered in respect of front wheel housing liner, depending on vehicle model. -
Only the left side is shown. The procedure for the right side is similar.
| 1 - | Front wheel housing liner |
- Material PP/EPDM
- Removing and installing → Chapter
| 2 - | Bolt |
- Qty. 7 on each side
- 2.0 Nm
| 3 - | Wheel housing liner front part |
- Material PP/EPDM
- With cover; different versions, allocation → Electronic Parts Catalogue “ETKA”
- Removing and installing → Chapter
| 4 - | Bolt |
- Qty. 6 on each side
- 2.0 Nm
| 5 - | Expanding nut |
- Qty. 7 on each side
