Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-

This page covers removing the Volkswagen Golf Mk7 mirror with both sensor and front camera — unclip the front cover from the interior light -W1- and pull it down approximately 10 mm before releasing the locking lugs.

Removing

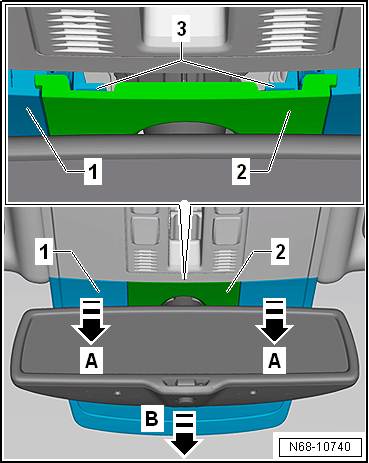

–  Unclip front cover -1- from front interior light -W1- and pull it downwards by approx. 10 mm -arrows A-.
–  Release locking lugs -3- using as small screwdriver.
–  Pull front cover -1- towards front off front interior light -W1- and retaining plate -arrow B- and remove it.
–  Remove rear cover -2- towards rear.


Removing and installing automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-

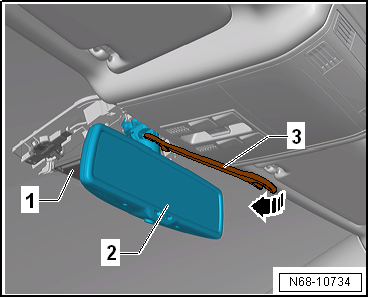

–  Turn interior mirror -2- anti-clockwise by 20° -arrow- using a 13 mm open-end spanner -3- and remove it downwards off retaining plate -1-.
–  Disconnect connector from interior mirror.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
