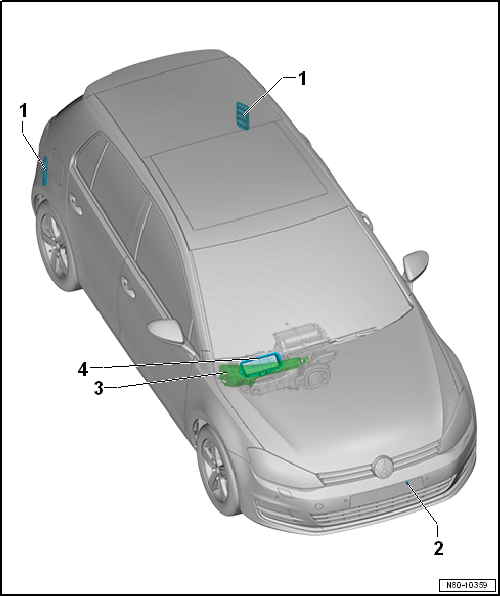

Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - components not located in passenger compartment, Golf LHD
This overview maps Volkswagen Golf Mk7 LHD heating components outside the cabin: the passenger compartment exhaust ventilation and the ambient temperature sensor -G17-.
| 1 - | Exhaust ventilation for passenger compartment |
| Checking → Chapter |
| Removing and installing → Chapter |
| 2 - | Ambient temperature sensor -G17- |
| Removing and installing → Chapter |
| 3 - | Cover for fresh air intake duct |
| Removing and installing → Chapter |
| 4 - | Fresh air intake |
| Removing and installing → Chapter |
Questions & answers
Overview of fitting locations - components not located in passenger compartment, Golf LHD — Volkswagen Golf Mk7
What heating components are outside the Golf Mk7 cabin (LHD)?
Exhaust ventilation, ambient temperature sensor -G17-, fresh air inlet, expansion tank, coolant lines, and the heater matrix connections.
Overview of fitting locations - components not located in passenger compartment,
Golf RHD
1 -
Exhaust ventilation for passenger compartment
Checking
→ Chapter
Removing and installing
→ Chapter
...
