Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing right temperature flap control motor -V159-, LHD vehicles

Using the vehicle diagnostic tester, this page covers removing the LHD Volkswagen Golf Mk7 Climatronic right temperature flap motor -V159- — switch off all consumers and remove the ignition key first.

Special tools and workshop equipment required
Vehicle diagnostic tester
First carry out the following work:
–  Switch off all electrical consumers.
–  Switch off ignition.
–  Remove ignition key.
Removing
–  Remove baffle plate → Chapter.

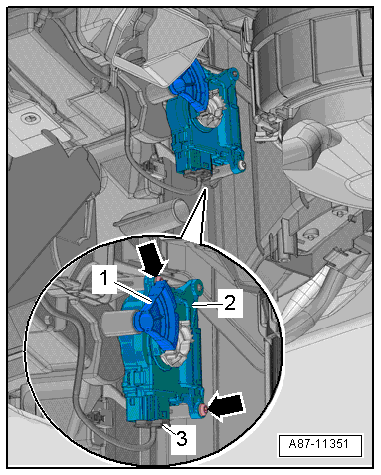

–  Pull off actuating lever -1- for temperature flap.
–  Unscrew bolts -arrows-.
–  Remove right temperature flap control motor -V159--2-.
–  Disconnect electrical connector -3-.


Removing and installing right temperature flap control motor -V159-, LHD vehicles

Installing
Installation is carried out in the reverse order. When installing, note the following:
  Note
Check operation of flaps and hinge mechanism before fitting.
Make sure levers and shafts are properly fitted in the mounts.

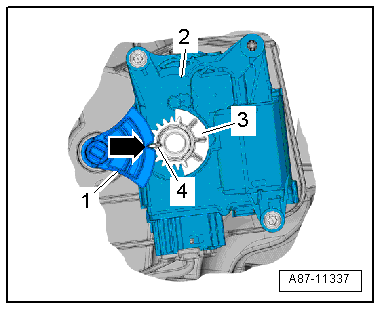

–  Fit control motor -1- on air distribution housing. Gear wheel -2- on control motor must engage in gear wheel -3- on temperature flap lever.
The long tooth -4- must engage in recess -arrow- on actuating lever.
  Note
If the gear wheels on the control motor and temperature flap lever do not align, rotate the receptacle in the control motor.
If the bolts cannot be fitted, the control motor is not completely seated on the housing.
–  Switch on ignition, connect respective control motor to vehicle wiring harness and select a setting on operating and display unit to set control motor to desired position (e.g. mid-position). Wait until control motor has moved to desired position and switch off ignition.
–  Route wiring harness so that it cannot come into contact with any moving parts (e.g. actuating arm on control motor).
  Note
Turn the control motor until it reaches a convenient position for installation. The direction of rotation can be changed by changing polarities.
–  Read event memory, and clear any entries displayed. Then, perform “basic setting”vehicle diagnostic tester in “Guided fault finding” mode.
–  As a final step, check operation of heater and air conditioning system.
Specified torque
→ Chapter „Assembly overview - heater and air conditioning unit“


Removing and installing right temperature flap control motor -V159-, LHD vehicles
