Lift off lid for battery compartment
→ Chapter. |
| – |

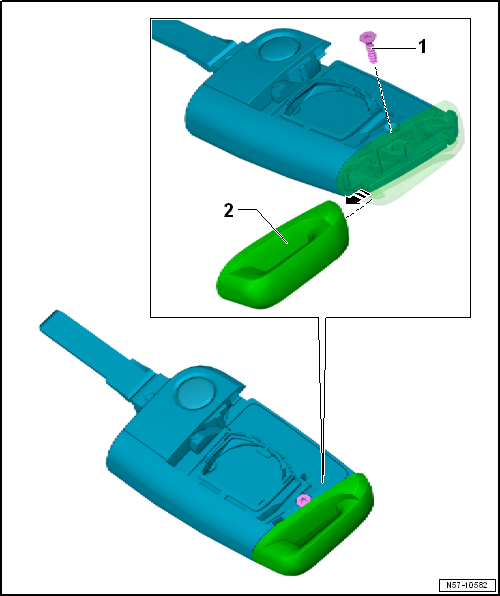

Push cap -2- out from the ignition key
laterally -arrow-. |
Note
| Use the screw -1- to cut the thread in
on a new cap. |
| – |
Push cap -2- latterly onto the ignition
key. |
| – |
Press lid onto battery compartment |
Questions & answers
Removing and installing cap on ignition key — Volkswagen Golf Mk7
How do I remove the Golf Mk7 key housing cap?
Lift off the battery compartment lid, remove the bolt, and push the cap out sideways from the key body.
Why would I remove the Golf Mk7 key cap?
To replace a cracked or worn key housing, or to access internal components during key refurbishment.
Removing
–
Folding out key bit -1--arrow a-.
–
Use a small screw ...
