Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview – underbody covers, petrol/diesel

This assembly overview covers the petrol/diesel Volkswagen Golf Mk7 underbody covers: front and rear covers, the main underbody cover with 7 captive nuts per side (2.0 Nm), and the speed-nut fasteners.

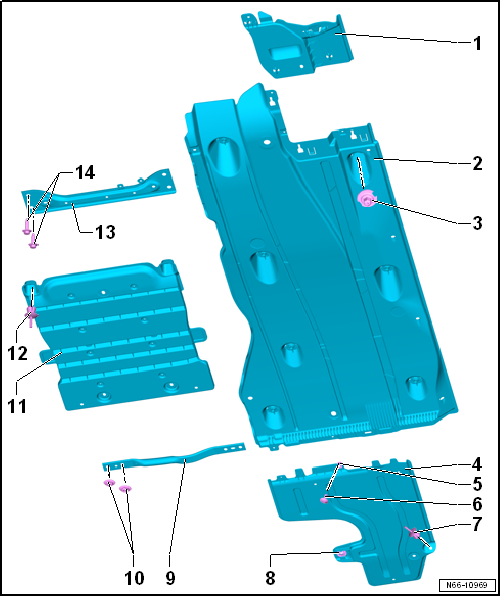

Assembly overview – underbody covers, petrol/diesel

1 -  Front cover
  • Left and right
  • Removing and installing → Chapter
2 -  Underbody cover
  • Left and right
  • Removing and installing → Chapter
3 -  Nut
  • With captive
  • Qty. 7 on each side
  • 2.0 Nm
4 -  Rear underbody cover
  • Removing and installing → Chapter
5 -  Speed nut
6 -  Bolt
  • 2 Nm.
7 -  Spreader rivet
8 -  Retainer
9 -  Rear tunnel cross-piece
  • Removing and installing → Chapter
10 -  Nut
  • Qty. 2 on each side
  • 20 Nm
11 -  Centre underbody panels
  • Removing and installing → Chapter
12 -  Spreader rivet
  • Qty. 4
13 -  Front tunnel cross-piece
  • Removing and installing → Chapter.
14 -  Bolt
  • Qty. 2 on each side
  • 20 Nm

    Questions & answers

    Assembly overview – underbody covers, petrol/diesel — Volkswagen Golf Mk7

    What does the Golf Mk7 petrol/diesel underbody cover assembly show?
    Front covers (left and right), centre underbody covers (left and right), rear cover, and all mounting hardware — nuts with captive washers, bolts and spreader rivets.
