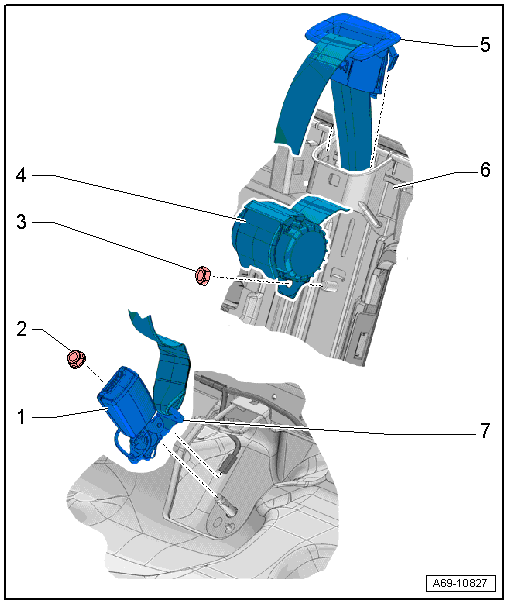

Assembly overview - rear centre three-point seat belt

1 -  Belt buckle
  • With rear belt switch, front passenger side -E259-
  • Removing and installing → Chapter
  • Always renew after belt tensioner has deployed with seat belt fastened
  • Must rest flat against contact surface when tightening nut
2 -  Nut
  • Specified torque 40 Nm
3 -  Nut
  • Removed due to an accident with seat belt fastened, renew nut.
  • Specified torque 40 Nm
4 -  Belt inertia reel
  • Removing and installing → Chapter
5 -  Rear centre belt guide
  • Renew complete belt guide if damaged
  • To remove, push locking lugs inwards on both sides and pull out belt guide
  • When installing, push in belt guide until it audibly engages
6 -  Right rear seat backrest (2/3)
7 -  Rear centre belt end fitting
  • Removing and installing → Chapter
