Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - crankcase breather system

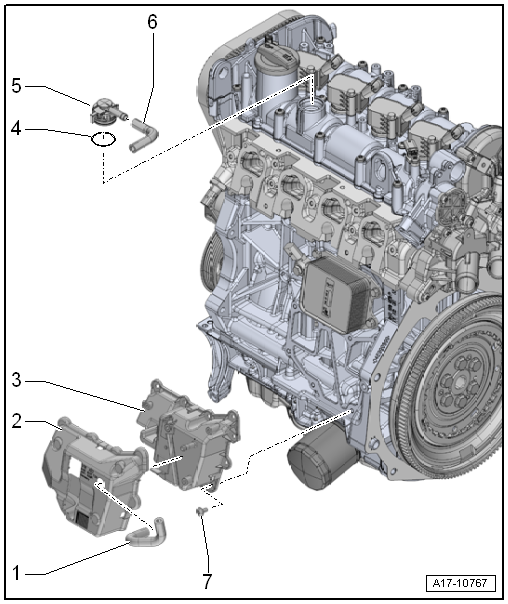

This assembly overview covers the Volkswagen Golf Mk7 crankcase breather system: the breather hoses, the oil separator (renew if damaged), and an always-renewed O-ring.
| 1 - | Hose |
| For crankcase breather |
| 2 - | Cover |
| For oil separator |
| 3 - | Oil separator |
| Removing and installing → Chapter |
| Renew if damaged |
| 4 - | O-ring |
| Renew |
| 5 - | Union |
| 6 - | Hose |
| For crankcase breather |
| 7 - | Bolt |
| Self-locking. |
| Renew |
| 9 Nm |
|
|
