 Note
| The left and right Bowden cables cannot be renewed
individually. |
| Special tools and workshop equipment
required |
|
|
|
| |
Special pop rivet pliers -V.A.G 1753B- |
| – |
Remove backrest cover and backrest padding
→ Chapter. |
Note
| Spring cushion or lumbar support need not be removed to
remove and install Bowden cable. |
|
|
|
| – |

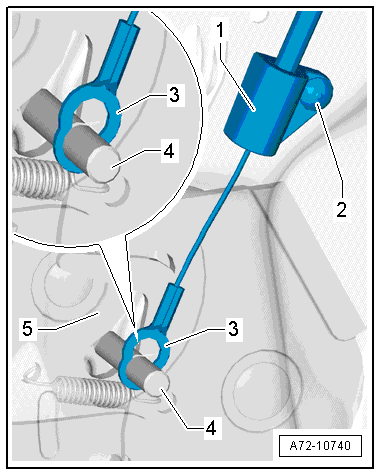

Using pliers, detach eye -3- on
pin -4- for backrest release
mechanism on both sides. |
WARNING
|
| – |
Dill out rivet -2- on left and
right and remove retainer -1- from
backrest frame -5-. |
|
|
|
| – |

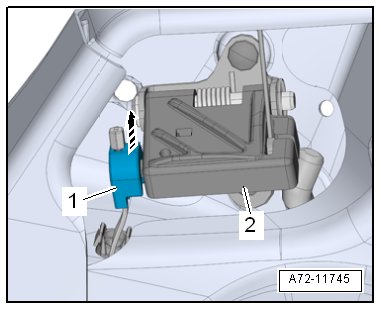

Push Bowden cable end-piece -1-
in -direction of arrow- off
mounting bracket for backrest release mechanism
-2- using a screwdriver. |
|
|
|
| – |

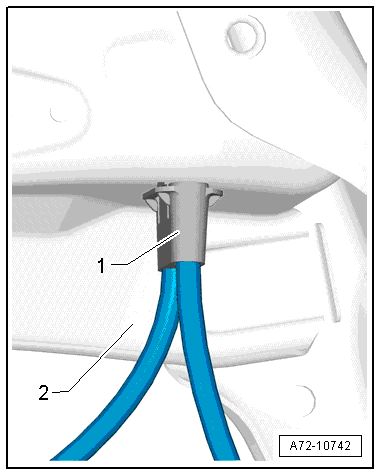

Unclip Bowden cable support bracket
-1- from backrest frame -2-. |
| – |
Thread out Bowden cable end-piece through mounting opening
in backrest frame. |
| – |
Cut through cable ties and remove Bowden cables from
backrest frame. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
