Volkswagen Golf Mk7 Owners Manual: Fuse tables for fuses in the engine compartment

Fig. 231 shows the engine compartment fuse layout for the Volkswagen Golf Mk7. As with the dash-panel table, this covers the customer-relevant fuses — this page explains how to read the location and fuse-number columns together.

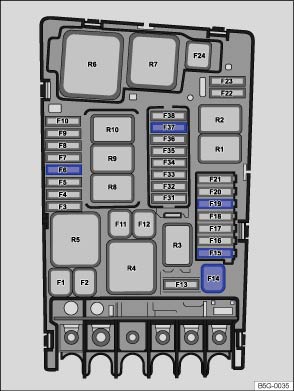

Fig. 231 Engine compartment: fuse layout

First read and observe the introductory information and safety warnings

The table shows the fuse locations for the items of electrical equipment which are most relevant to the customer. The left column contains the location, the other columns contain the fuse designs, the amp rating and the consumer.

Fuse location Fuse design Amp rating Electrical consumers
F6 ATO® 5 Brake light sensor
F14 JCASE® 40 Windscreen heating
F15 ATO® 15 Horn
F19 ATO® 30 Windscreen wipers
F37 ATO® 20 Auxiliary heater

Depending on the version and specification of your vehicle, the fuse numbers and positions may differ to those given in the table. If necessary ask your Volkswagen dealership for the exact fuse layout.

    Questions & answers

    Fuse tables for fuses in the engine compartment — Volkswagen Golf Mk7

    What circuits do the Golf Mk7 engine bay fuses protect?
    Higher-current circuits such as the radiator fan, ABS module, headlights, fuel pump and engine management — systems that draw more power than the dashboard fuses handle.
    Are there different fuse types in the Golf Mk7 engine bay?
    Yes. The engine bay uses both flat-blade fuses and larger JCASE fuses. They require different pulling tools — the plastic pliers work for both.
    What is a JCASE fuse on the Golf Mk7?
    A larger, higher-current fuse used for major circuits like the radiator fan motor. It looks different from a standard flat-blade fuse and must be replaced like-for-like.
