Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - three-point seat belt, estate, with belt tensioner

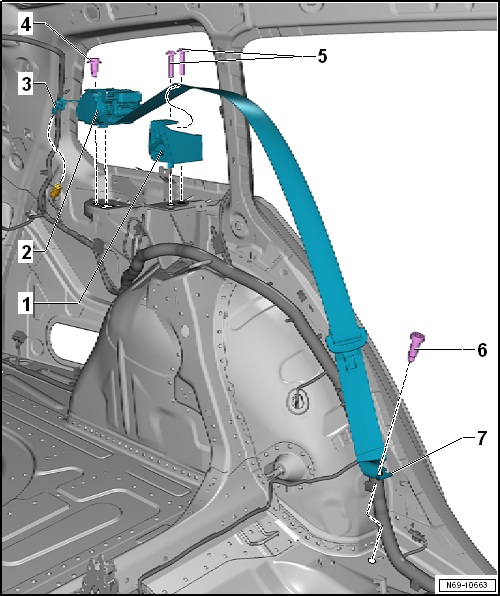

This assembly overview covers the Volkswagen Golf Mk7 estate rear seat belt with tensioner: the belt guide, inertia reel, wiring harness, and the 40 Nm bolt requiring mandatory renewal after deployment.
| 1 - | Belt guide |
- Removing and installing → Chapter
| 2 - | Belt inertia reel |
- Removing and installing → Chapter
| 3 - | Electrical wiring harness |
| 4 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 5 - | Bolts |
- Qty. 2
- 8 Nm
| 6 - | Bolt for rear outer belt end fitting |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 7 - | Rear outer belt end fitting |
- Removing and installing → Chapter
