Using locating pins -T10096- and jack -V.A.G 1383 A-, this page covers fixing the Volkswagen Golf Mk7 multi-link rear subframe's original position — positioning the jack under the subframe with a universal support.
| Special tools and workshop equipment
required |
|
|
|
| Engine and gearbox jack -V.A.G 1383 A- |

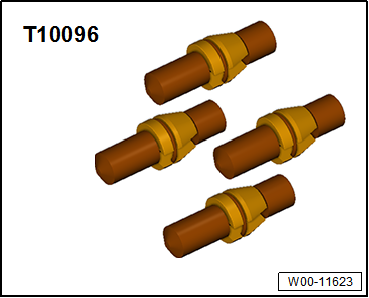

| Installing locating pins -T10096- |
|
|
|
| – |

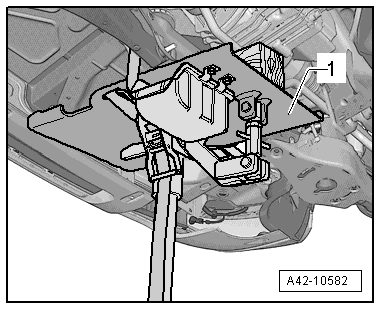

Position engine and gearbox jack -V.A.G 1383 A- with
universal gearbox mounting -V.A.G 1359/2--1-
under subframe and secure with tensioning strap. |
|
|
|
| – |

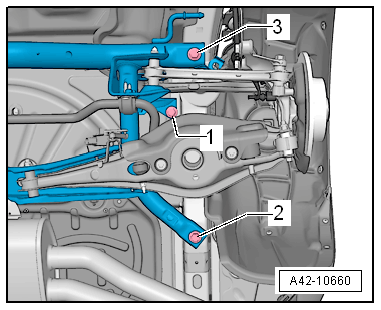

Unscrew bolt -1- on both sides. |
| To fix position of subframe, locating pins -T10096- must be
screwed in successively at positions -2-
and -3- on both sides of vehicle. |
|
|
|
| – |

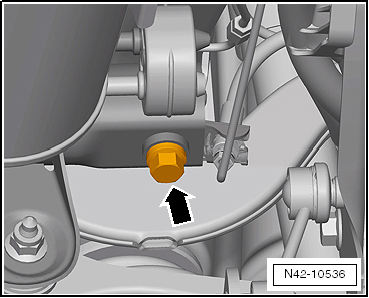

Remove one of the front bolts of the subframe
-arrow- |
|
|
|
| – |

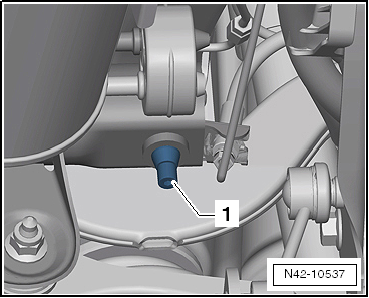

Screw in locating pins -T10096--1-. |
 Note
| The locating pins -T10096- may be tightened only to a
maximum of 20 Nm; otherwise the threads of the locating pins may
be damaged. |
| – |
This procedure must now be carried out for the second front
bolt and the rear bolts of the subframe. |
| The position of the subframe is now fixed. |
|
|
|
