| Special tools and workshop equipment
required |
| Vehicle diagnostic tester |
| First carry out the following work: |
| – |
Switch off all electrical consumers. |
| – |
Remove dash panel
→ General body repairs, interior; Rep. gr.70. |
|
|
|
| – |

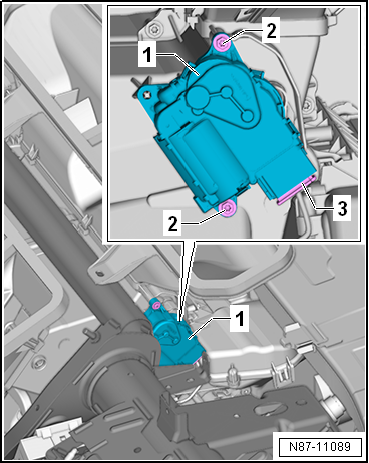

Remove defroster flap control motor -V107--1-. |
| – |
Disconnect electrical connector -3-. |
| Installation is carried out in the reverse order. When
installing, note the following: |
 Note
| Check operation of flaps and hinge mechanism before fitting. |
| Make sure levers and shafts are properly fitted in the
mounts. |
| The illustration shows a left-hand drive vehicle. |
|
|
|
| – |
Receptacle of control motor -1-
can be fitted on actuating arm -2-
in only one position. |
| The receptacle of the control motor must align with the
actuating arm as shown in illustration. |
Note
| Rotate the receptacle in the control motor if the mount and
actuating arm do not align. |
| – |
Switch on ignition, connect respective control motor to
vehicle wiring harness and select a setting on operating and
display unit to set control motor to desired position (e.g.
mid-position). Wait until control motor has moved to desired
position and switch off ignition. |
| – |
Fit control motor on air intake box. The actuating arm must
engage in receptacle -1--arrow-
while doing so. |
| There must not be any play in the connection between control
motor and actuating lever. |
Note
| If the bolts cannot be fitted, the control motor is not
completely seated on the housing. |
| – |
Route wiring harness so that it cannot come into contact
with any moving parts (e.g. actuating arm on control motor). |
| – |
Read event memory, and clear any entries displayed. Then,
perform “basic setting”vehicle diagnostic tester in “Guided
fault finding” mode. |
| – |
As a final step, check operation of heater and air
conditioning system. |
| → Chapter „Assembly overview - heater and air conditioning unit“ |
| Dash panel
→ General body repairs, interior; Rep. gr.70. |
|
|
|
