| 1 - |

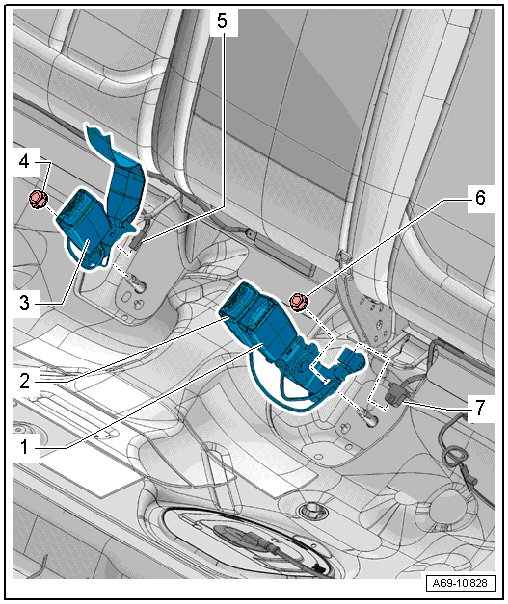

Left double belt buckle |
- With rear belt switch, driver side -E258-
- Removing and installing
→ Chapter
- Always renew after belt tensioner has deployed with seat belt fastened
- Press on belt buckle when bolting it on
- Must rest flat against contact surface
- With rear centre belt switch -E609-
- Removing and installing
→ Chapter
- Always renew after belt tensioner has deployed with seat belt fastened
- Press on belt buckle when bolting it on
- Must rest flat against contact surface.
| 3 - |
Right belt buckle with rear centre belt end fitting |
- With rear belt switch, front passenger side -E259-
- Removing and installing
→ Chapter
- Always renew after belt tensioner has deployed with seat belt fastened
- Must rest flat against contact surface when tightening nut
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 5 - |
Electrical connections |
- For rear belt switch, front passenger side -E259
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 7 - |
Electrical connections |
- For rear belt switch, driver side -E258- and rear centre belt switch
-E609
