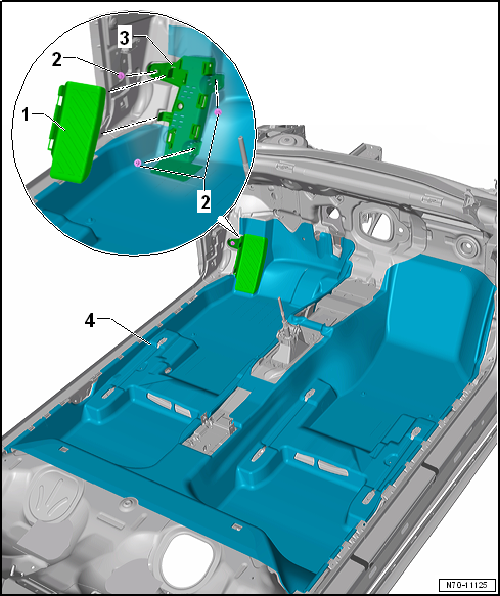

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - foot rest and floor covering, LHD vehicles
This assembly overview covers the LHD Volkswagen Golf Mk7 foot rest and floor covering: the foot rest (which must fully engage into its bracket), 3 nuts at 2 Nm, and the one-piece floor covering.
| 1 - | Foot rest |
- Removing and installing → Chapter
- Must fully engage into bracket.
| 2 - | Nut |
- Qty. 3
- 2 Nm
| 3 - | Bracket |
- Removing and installing → Chapter
| 4 - | Floor covering |
- One-piece design
- Removing and installing → Chapter „Removing and installing floor covering“
