Using torque wrench -V.A.G 1331- and socket -3410-, this page covers removing the Volkswagen Golf Mk7 right rear door striker pin (the right side is described; left is similar) — remove the bolts and lift the striker free.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1331- |
 Note
| Removal and installation are described only for the right
door striker pin. The right side is similar. |
|
|
|
| – |

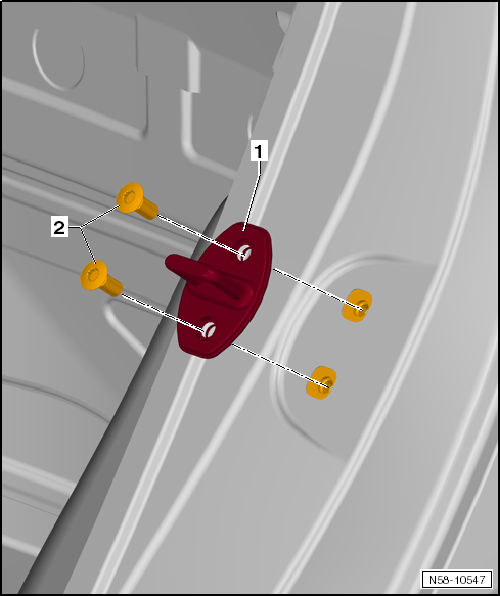

Remove bolts -2- and remove striker
-1-. |
| – |
Position striker pin -1- on B-pillar
-3- and tighten bolts
-2-. |
| – |
Adjusting striker pin
→ Chapter |
| |
Component |
Specified torques |
| Striker pin |
20 Nm |
