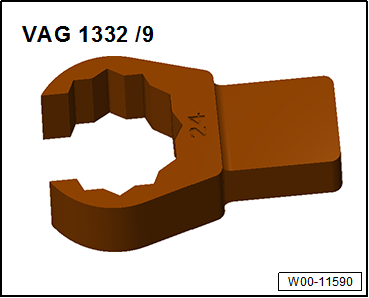

Using torque wrench -V.A.G 1332- and socket -V.A.G 1332/9-, this page covers adjusting Volkswagen Golf Mk7 front toe — counterhold the track rod ball joint with a suitable tool when loosening the lock nut.
| Special tools and workshop equipment
required |
|
|
|
| Torque wrench -V.A.G 1332- |
|
|
|
| – |

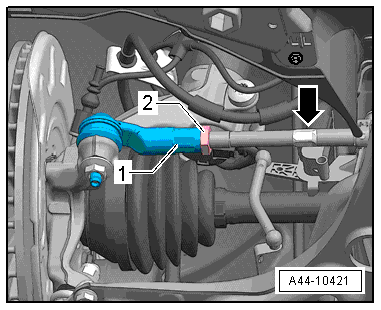

Counterhold track rod ball joint -1-
with a suitable tool when loosening and tightening lock nut
-2-. |
| – |
Adjust toe setting at both wheels by turning hexagon flats
-arrow-. |
 Note
| Ensure that bellows on steering rack are not damaged or
twisted. Twisted boots wear out quickly. |
| Tighten lock nuts on threaded portion only when vehicle is
standing on its wheels - track rod ball head must be parallel
with steering lever of suspension strut. |
| – |
Tighten lock nut -2- and check
toe setting again. |
| The setting may change slightly after lock nut
-2- is tightened . |
| However, if the measured toe value lies within the
tolerance, the adjustment is correct
→ Chapter „Specified values for wheel alignment“. |
| → Chapter „Repairing steering rack“ |
|
|
|
Questions & answers
Adjusting front axle toe — Volkswagen Golf Mk7
How do I adjust Golf Mk7 front toe?
Loosen the track rod end lock nuts, turn the tie rods equally on both sides to adjust total toe. Re-tighten lock nuts and re-check.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1332-
...
If run-out compensation is not performed, it is not possible
to adjust toe-in correctly!
The existing lateral run-out of the wheel must be
comp ...
