 Note
| Fuel tank leak detection takes advantage of the fact that a
vacuum develops naturally in the fuel system as the fuel in the
tank cools. The variables temperature and pressure are necessary
for fuel tank leak detection. The temperature sensor is
integrated into the control unit for fuel tank leak detection
-J909-. The tank pressure sensor -G400- is fitted in the
pressure control valve. The system is deemed leak-free if
2.5 mbar vacuum is measured as the tank temperature drops. If no
vacuum develops, there is a leak in the fuel system, and an
entry will be made in the event memory of the engine control
unit. |
|
|
|
| 1 - |
Activated charcoal filter |
| Fitting location: In rear right wheel housing beneath liner |
| Removing and installing
→ Chapter. |
| 3 - |
Pressure regulating valve |
| With tank pressure sensor -G400- |
| From activated charcoal filter to engine |
| The gasket must not be dirty or damaged |
| 6 - |
Control unit for fuel tank leak detection -J909- |
| 9 - |
Activated charcoal filter solenoid valve 1 -N80- |
| Checking → Vehicle
diagnostic tester |
Questions & answers

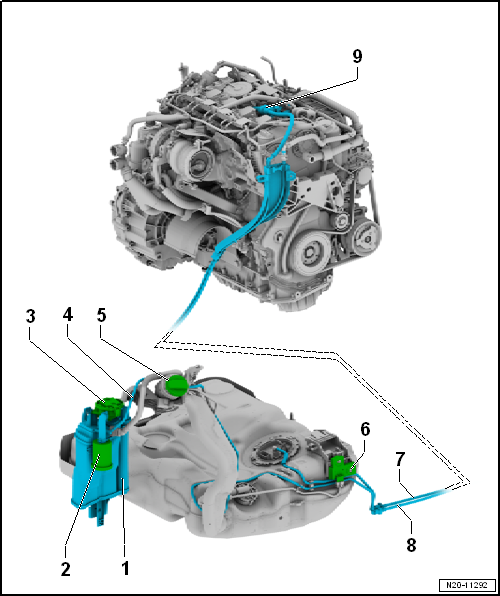

Connection diagram - activated charcoal filter — Volkswagen Golf Mk7
What does the Golf Mk7 charcoal filter connection diagram show?
The vapour path from the fuel tank through the charcoal canister to the intake manifold purge valve, with the leak detection system tee.
1 -
Connecting hose
From air filter to pressure control valve
2 -
Hose clips
3 -
Pressure regulating v ...
