Risk of hand injury caused by the radiator fan
starting automatically.Do not grasp into the radiator fan when
disconnecting the connector.
 Note
| Reinstall all cable ties in the same locations when
installing. |
| – |
Remove radiator cowl
→ Chapter. |
|
|
|
| – |
Separate electrical connectors. |
| – |

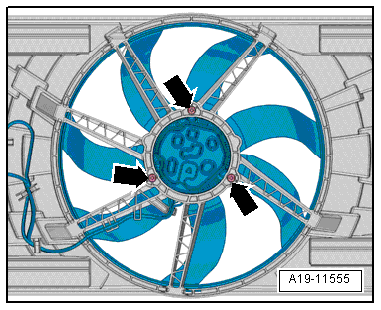

Unscrew bolts -arrows- and
remove radiator fan -V7-. |
| Installation is carried out in the reverse order; note the
following: |
| – |
Install radiator cowl
→ Chapter. |
| → Chapter „Assembly overview - radiator cowl and radiator fan“ |
|
|
|
